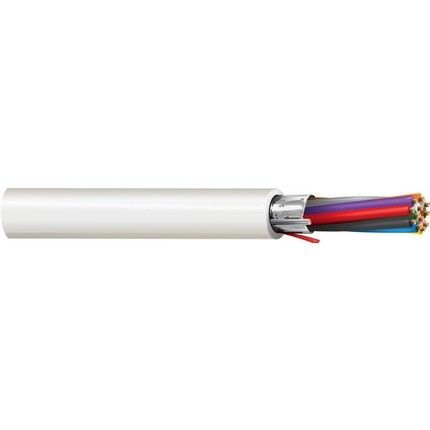

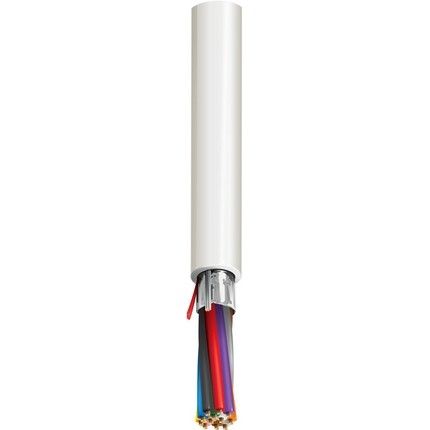

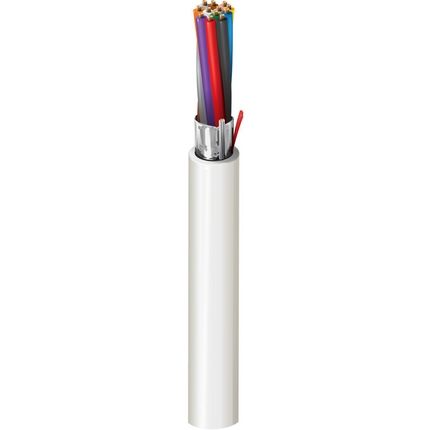

Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 6309FE Multi-Conductor - Commercial Applications For more Information please call 1-800-Belden1 General Description: Security & Alarm Cable, Plenum-CMP, 12-18 AWG stranded bare copper conductors with Flamarrest insulation, Beldfoil shield and Flamarrest jacket with ripcord Usage (Overall) Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls Physical Characteristics (Overall) Conductor AWG: Conductors AWG Stranding Conductor Material 12 18 7x26 BC - Bare Copper Total Number of Conductors: 12 Insulation Insulation Material: Insulation Trade Name Insulation Material Wall Thickness (in.) Flamarrest LS PVC - Low Smoke Polyvinyl Chloride 0.010 Outer Shield Outer Shield Material: Outer Shield Trade Name Type Outer Shield Material Coverage (%) Beldfoil Tape Aluminum Foil-Polyester Tape 100.000 Outer Shield Drain Wire AWG: AWG Stranding Drain Wire Conductor Material 24 (7x32) TC - Tinned Copper Outer Jacket Outer Jacket Material: Outer Jacket Trade Name Outer Jacket Material Nom. Wall Thickness (in.) Flamarrest LS PVC - Low Smoke Polyvinyl Chloride 0.017 Outer Jacket Ripcord: Yes Overall Cable Overall Cabling Color Code Chart: Number Color 1 Black 2 Red 3 White 4 Green 5 Brown 6 Blue 7 Orange 8 Yellow 9 Purple 10 Gray 11 Pink 12 Tan Overall Nominal Diameter: 0.312 in. Mechanical Characteristics (Overall) Operating Temperature Range: 0C To +75C UL Temperature Rating: 75C Bulk Cable Weight: 91.100 lbs/1000 ft. Max. Recommended Pulling Tension: 282.800 lbs. Min. Bend Radius/Minor Axis: 3.125 in. Page 1 of 3 09-11-2017Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 6309FE Multi-Conductor - Commercial Applications Min. Bend Radius/Minor Axis: 3.125 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CMP NEC Articles: 800 CEC/C(UL) Specification: CMP EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes Flame Test UL Flame Test: NFPA 262 C(UL) Flame Test: FT6 Suitability Suitability - Indoor: Yes Plenum/Non-Plenum Plenum (Y/N): Yes Plenum Number: 5309FE Electrical Characteristics (Overall) Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 42 Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 76 Nom. Conductor DC Resistance: DCR 20C (Ohm/1000 ft) 6.5 Nominal Outer Shield DC Resistance: DCR 20C (Ohm/1000 ft) 13.100 Max. Operating Voltage - UL: Voltage 300 V RMS Max. Recommended Current: Description Current 10C Temperature Rise 3.5 Amps per conductor 25C ambient Put Ups and Colors: Item Putup Ship Weight Color Notes Item Desc 6309FE 8771000 1,000 FT 99.000 LB NATURAL C 12 18 FLRST FS FLRST 6309FE 877500 500 FT 50.500 LB NATURAL 12 18 FLRST FS FLRST Notes: C = CRATE REEL PUT-UP. Revision Number: 3 Revision Date: 01-19-2015 2017 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anAS I basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. Page 2 of 3 09-11-2017
