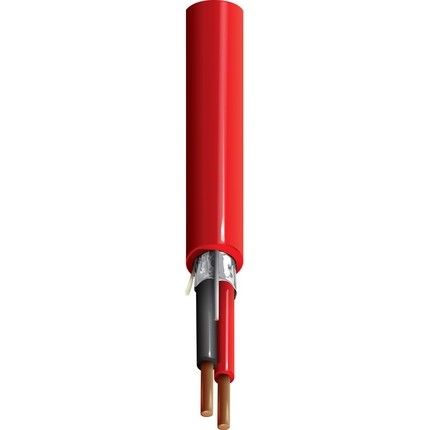

Product: 6320FL Fire Alarm, 18-2c BC, Shielded, FPLP Product Description Fire Alarm Cable, Plenum-FPLP, 2-18 AWG solid bare copper conductors with Flamarrest insulation, overall Beldfoil shield, Flamarrest jacket with ripcord Technical Specifications Product Overview Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment Construction Details Conductor Element Number of Element AWG Stranding Material Conductor(s) 2 18 Solid BC - Bare Copper Insulation Element Material Thickness in. Color Code Conductor(s) PVC - Polyvinyl Chloride 0.010 Black, Red Outer Shield Material Shield Type Material Coverage Drainwire Type Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (Solid) TC Outer Jacket Material Material Thickness Nom. Diameter Ripcord PVC - Polyvinyl Chloride 0.015 in 0.155 in Yes Cable Diameter (Nominal): 0.155 in Electrical Characteristics Electricals Nom. Conductor Element Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current DCR Conductor(s) 6.4 Ohm/1000ft 65 pF/ft 117 pF/ft 5 Amps per conductor 25C Nom Outer Shield DCR: 16.9 Ohm/1000ft Voltage UL Voltage Rating 300 V (FPLP) Mechanical Characteristics Temperature UL Rating Operating 75C 0C to +75C Bend Radius Stationary Min. Installation Min.1.5 in 1.6 in Max. Pull Tension: 53 lbs Bulk Cable Weight: 20 lbs/1000ft Standards and Compliance Environmental Suitability: Indoor - Plenum, Indoor Flammability / Fire Resistance: NFPA 262, UL 910 (Plenum), IEC 60332-1-2 NEC / UL Compliance: Article 760, FPLP CPR Euroclass: Eca European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) Other Standard Compliance(s): California State Fire Marshall Non-Plenum Number: 5320FL History Update and Revision: Revision Number: 0.271 Revision Date: 08-25-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
