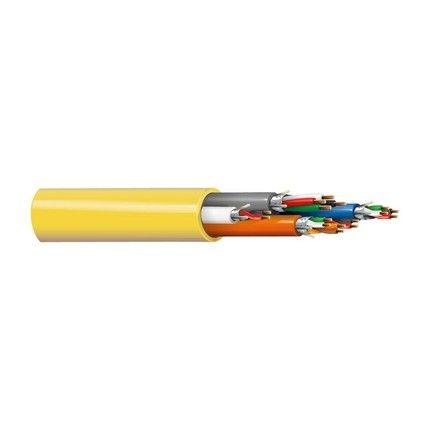

Product: 658AFJ Access Control, 16c ( 22-3pr, 18-4c, 22-6c), Shielded, Outer Jacket, CMP Product Description Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, Each cable has overall Beldfoil shield and Flamarrest jacket, overall Flamarrest jacket Technical Specifications Product Overview Suitable Applications: Access Control, Security System, Power Limited Controls Construction Details Conductor Element Description Element Number of Element AWG Stranding Material Card Reader Pair(s) 3 22 7x30 BC - Bare Copper Door Contact Conductor(s) 2 22 7x30 BC - Bare Copper REX/Spare Conductor(s) 4 22 7x30 BC - Bare Copper Lock Power Conductor(s) 4 18 7x26 BC - Bare Copper Insulation Element Description Element Material Thickness in. Color Code Card Reader Pair(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.009 Black & Red, White & Green, Brown & Orange Door Contact Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.009 Black, Red REX/Spare Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.009 Black, Red, White, Green Lock Power Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.010 Black, Red, White, Green Inner Shield Material Element Description Element Shield Type Material Coverage Drainwire Type Card Reader Pair(s) Tape Alum / Poly 100% 24 AWG (7x32) TC Door Contact Conductor(s) Tape Alum / Poly 100% 24 AWG (7x32) TC REX/Spare Conductor(s) Tape Alum / Poly 100% 24 AWG (7x32) TC Lock Power Conductor(s) Tape Alum / Poly 100% 24 AWG (7x32) TC Inner Jacket Material Element Description Element Material Nom. Diameter Ripcord Color Card Reader Pair(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.216 in Yes Orange Door Contact Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.128 in Yes White REX/Spare Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.147 in Yes Blue Lock Power Conductor(s) PVC-LS - Polyvinyl Chloride (Low Smoke) 0.193 in Yes Gray Outer Jacket Material Material Thickness Nom. Diameter Ripcord PVC-LS - Polyvinyl Chloride (Low Smoke) 0.020 in 0.463 in Yes Cable Diameter (Nominal): 0.463 in Electrical Characteristics ElectricalsElement Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current Description Card Reader Pair(s) 16.3 Ohm/1000ft 14.9 Ohm/1000ft 33 pF/ft 60 pF/ft 2 Amps per Conductor at 25C Door Contact Conductor(s) 16.4 Ohm/1000ft 17.2 Ohm/1000ft 55 pF/ft 99 pF/ft 2.2 Amps per Conductor at 25C REX/Spare Conductor(s) 16.4 Ohm/1000ft 17.2 Ohm/1000ft 33 pF/ft 59 pF/ft 2.2 Amps per Conductor at 25C Lock Power Conductor(s) 6.5 Ohm/1000ft 16.4 Ohm/1000ft 42 pF/ft 76 pF/ft 4 Amps per Conductor at 25C Voltage UL Voltage Rating 300 V (UL CMP) Mechanical Characteristics Temperature UL Rating Operating 0C to +75C 0C to +75C Bend Radius Stationary Min. Installation Min. 4.75 in 4.6 in Max. Pull Tension: 200 lbs Bulk Cable Weight: 108 lbs/1000ft Standards and Compliance Environmental Suitability: Indoor - Plenum, Indoor Sustainability: Product Lens, Environmental Product Declaration (EPD) Available Flammability / Fire Resistance: NFPA 262, FT6, FT6, IEC 60332-1-2 NEC / UL Compliance: Article 800, CMP CEC / C(UL) Compliance: CMP CPR Euroclass: Eca European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) Non-Plenum Number: 558AFJ History Update and Revision: Revision Number: 0.351 Revision Date: 07-31-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
