72002NH.02305 Belden

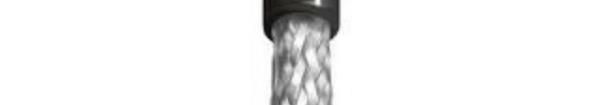

Industrial Ethernet Cables SF/UTP CAT 5E 2 Pair Cables A range of shielded copper cables for use in industrial Ethernet networks, designed to withstand the entire spectrum of environmental and mechanical hazards, from temperature extremes and sunlight, to solvents, oils, chemicals and moisture. Ordering Information Belden European Item Numbers Jacket Number S t ationary Flexible Material Performance of Pairs Application Application PVC CAT 5E 2 Pairs 72001E 72002E CAT 5E 2 Pairs Premium FRNC 72001NH 72002NH CAT 5E 2 Pairs PUR (Halogen Free) 72001PU 72002PU Applications Industrial environments where IP67 may be required Transmission of data in industrial applications via the ethernet protocol Stationary applications, where there is no movement after installation Flexible applications, subject to occasional movement or vibration after installation Features & Benefits Choice of PVC, Premium FRNC or PUR cable jacket for specific application requirements in the harsh industrial environment High shield coverage to maintain signal integrity in the industrial noisy environment Oil resistant Chemical & solvent resistant Temperature resistant Abrasion resistant Excellent mechanical resistance Weld-splatter resistant PUR cable jacket available on request IP67 rated UV resistant Black cable jacket Construction & Dimensions Mechanical Data Stationary Application Conductor (24AWG/1 Solid Bare Copper) 2 Twisted, Polypropylene Insulated Conductors - Pair 1 = White / Blue - Pair 2 = White / Orange Foil Shield Laminated Aluminium / Polyester Braid Shield Tinned Copper IIIInnnnssssuuuullllaaaattttiiiioooonnnn BBBBrrrraaaaiiiidddd SSSShhhheeeeaaaatttthhhh SSSShhhheeeeaaaatttthhhh SSSShhhheeeeaaaatttthhhh PPaarrtt NNuummbbeerr CCoonndduuccttoorr ((NNoomm.. DDiiaa..)) CCoovveerraaggee MMaatteerriiaall ((NNoomm.. DDiiaa..)) CCoolloouurr PPaarrtt NNuummbbeerr CCoonndduuccttoorr ((NNoomm.. DDiiaa..)) CCoovveerraaggee MMaatteerriiaall ((NNoomm.. DDiiaa..)) CCoolloouurr 72001E 24AWG/1 1.10mm >80% PVC 6.00mm Black Black 72001NH 24AWG/1 1.10mm >80% FRNC 6.00mm 72001PU 24AWG/1 1.10mm >80% PUR 6.00mm Black Mechanical Data Flexible Application Conductor (26AWG/7 7x0.16mm Stranded Tinned Copper) 2 Twisted, Polypropylene Insulated Conductors - Pair 1 = White / Blue - Pair 2 = White / Orange Foil Shield Laminated Aluminium / Polyester Braid Shield Tinned Copper IIIInnnnssssuuuullllaaaattttiiiioooonnnn BBBBrrrraaaaiiiidddd SSSShhhheeeeaaaatttthhhh SSSShhhheeeeaaaatttthhhh SSSShhhheeeeaaaatttthhhh PPaarrtt NNuummbbeerr CCoonndduuccttoorr ((NNoomm.. DDiiaa..)) CCoovveerraaggee MMaatteerriiaall ((NNoomm.. DDiiaa..)) CCoolloouurr PPaarrtt NNuummbbeerr CCoonndduuccttoorr ((NNoomm.. DDiiaa..)) CCoovveerraaggee MMaatteerriiaall ((NNoomm.. DDiiaa..)) CCoolloouurr 72002E 26AWG/7 0.98mm >80% PVC 6.00mm Black 72002NH 26AWG/7 0.98mm >80% FRNC 6.00mm Black 72002PU 26AWG/7 0.98mm >80% PUR 6.60mm Black 2
