7731A.00305 Belden

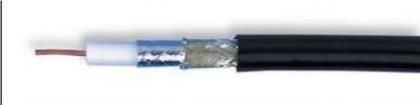

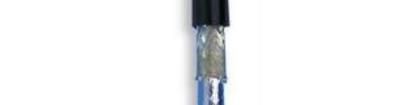

Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION 7731A Coax - Low Loss Serial Digital Coax For more Information please call 1-800-Belden1 General Description: RG-11/U type, 14 AWG solid .064 bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper braid shield (95% coverage), PVC jacket. Usage (Overall) Suitable Applications: SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080p Physical Characteristics (Overall) Conductor AWG: Coax AWG Stranding Conductor Material Dia. (mm) 1 14 Solid BC - Bare Copper 1.6256 Total Number of Conductors: 1 Insulation Insulation Material: Insulation Material Dia. (mm) Gas-injected FHDPE - Foam High Density Polyethylene 7.112 Outer Shield Outer Shield Material: Layer Outer Shield Trade Name Type Outer Shield Material Coverage (%) 1 Duofoil Tape Aluminum Foil-Polyester Tape-Aluminum Foil 100 2 Braid TC - Tinned Copper 95 Outer Jacket Outer Jacket Material: Outer Jacket Material PVC - Polyvinyl Chloride Overall Cable Overall Nominal Diameter: 10.160 mm Mechanical Characteristics (Overall) Operating Temperature Range: -30C To +75C Bulk Cable Weight: 129.473 Kg/Km Max. Recommended Pulling Tension: 644.989 N Min. Bend Radius/Minor Axis: 101.600 mm Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMG EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes RG Type: 11/U Page 1 of 3 07-21-2016Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION 7731A Coax - Low Loss Serial Digital Coax RG Type: 11/U Flame Test UL Flame Test: UL1666 Vertical Shaft CSA Flame Test: FT4 Suitability Suitability - Indoor: Yes Suitability - Outdoor: Yes - Black only. Suitability - Aerial: Yes - Black only, when supported by messenger wire. Suitability - Burial: No Plenum/Non-Plenum Plenum (Y/N): No Plenum Number: 7732A Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) 75 Nom. Inductance: Inductance (H/m) 0.318257 Nom. Capacitance Conductor to Shield: Capacitance (pF/m) 52.496 Nominal Velocity of Propagation: VP (%) 85 Nominal Delay: Delay (ns/m) 3.97001 Nom. Conductor DC Resistance: DCR 20C (Ohm/km) 8.2025 Nominal Outer Shield DC Resistance: DCR 20C (Ohm/km) 4.9215 Nom. Attenuation: Freq. (MHz) Attenuation (dB/100m) 1.000 0.525 3.580 0.951 5.000 1.116 7.000 1.280 10.000 1.509 67.500 3.445 71.500 3.576 88.500 3.970 100.000 4.200 135.000 4.823 143.000 4.954 180.000 5.545 270.000 6.464 360.000 7.579 540.000 9.416 720.000 11.155 750.000 11.319 800.000 11.812 1000.000 13.518 1500.000 16.733 2000.000 19.817 2250.000 21.097 3000.000 25.034 4500.000 31.366 6000.000 37.830 Page 2 of 3 07-21-2016
