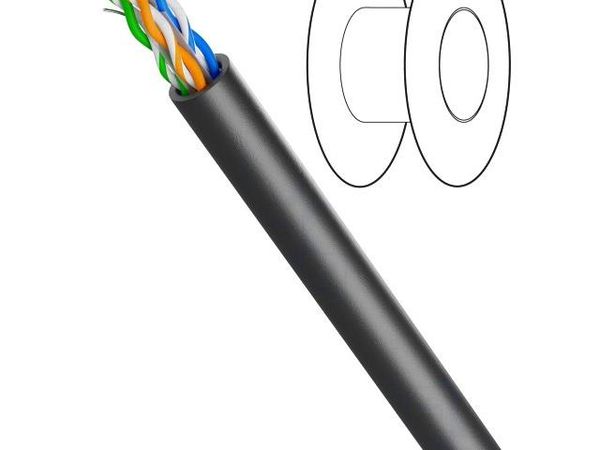

Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION 7927A Multi-Conductor - Category 6 DataTuff Twisted Pair Cable For more Information please call 1-800-Belden1 General Description: 23 AWG Bonded-Pair solid bare copper conductors, polyolefin insulation, E-Spline center member, industrial grade sunlight- and oil-resistant PVC jacket, rip cord. Sequential marking at two foot intervals. Usage (Overall) Suitable Applications: Industrial Ethernet Cable, Harsh Environments, 600 MHz Enhanced Category 6, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, RJ-45 Compatible Physical Characteristics (Overall) Conductor AWG: Pairs AWG Stranding Conductor Material 4 23 Solid BC - Bare Copper Total Number of Conductors: 8 Insulation Insulation Material: Insulation Material PO - Polyolefin Outer Shield Outer Shield Material: Outer Shield Material Unshielded Outer Jacket Outer Jacket Material: Outer Jacket Material Industrial Grade PVC - Polyvinyl Chloride Outer Jacket Ripcord: Yes Overall Cable Overall Cabling Fillers: E-Spline Center Member Overall Cabling Color Code Chart: Number Color 1 White/Green & Green 2 White/Orange & Orange 3 White/Blue & Blue 4 White/Brown & Brown Overall Nominal Diameter: 6.375 x 8.611 mm Mechanical Characteristics (Overall) Installation Temperature Range: -25C To +75C Operating Temperature Range: -40C To +75C Bulk Cable Weight: 49.855 Kg/Km Max. Recommended Pulling Tension: 200.169 N Page 1 of 4 01-30-2019Detailed Specifications & Technical Data METRIC MEASUREMENT VERSION 7927A Multi-Conductor - Category 6 DataTuff Twisted Pair Cable Max. Recommended Pulling Tension: 200.169 N Min. Bend Radius/Minor Axis: 63.500 mm Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CMR CEC/C(UL) Specification: CMR AWM Specification: UL Style 444 (300 V 75C) EU Directive 2011/65/EU (ROHS II): Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 10/13/2005 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes Other Specification: UL Verified to Category 6 Applicable Patents: Country www.belden.com/p Flame Test UL Flame Test: UL1666 Riser C(UL) Flame Test: FT4 IEEE Flame Test: 1202 Suitability Sunlight Resistance: Yes Oil Resistance: Yes Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Nom. Mutual Capacitance: Capacitance (pF/m) 50.8555 Maximum Capacitance Unbalance (pF/100 m): 65.6 Nominal Velocity of Propagation: VP (%) 67 Maximum Delay: Delay (ns/100 m) 538 100MHz Max. Delay Skew: Delay Skew (ns/100 m) 38 Maximum Conductor DC Resistance: DCR 20C (Ohm/100 m) 8.2 Max. Operating Voltage - UL: Page 2 of 4 01-30-2019
