8164 Belden

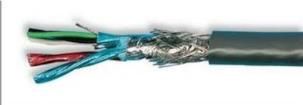

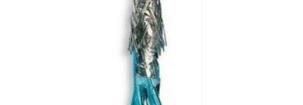

Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 8164 Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/422 & Digital For more Information please call 1-800-Belden1 General Description: 24 AWG stranded (7x32) TC conductors, Datalene insulation, twisted pairs individually Beldfoil shielded + overall 100% Beldfoil + TC braid shield (65% coverage), drain wire, PVC jacket. Physical Characteristics (Overall) Conductor AWG: Pairs AWG Stranding Conductor Material 4 24 7x32 TC - Tinned Copper Total Number of Conductors: 8 Insulation Insulation Material: Insulation Trade Name Insulation Material Wall Thickness (in.) Datalene FPE - Foam Polyethylene 0.019 Inner Shield Inner Shield Material: Inner Shield Trade Name Type Inner Shield Material Coverage (%) Beldfoil (Z-Fold) Tape Aluminum Foil-Polyester Tape 100 Inner Shield Drain Wire AWG: AWG 24 Inner Shield Drain Wire Stranding: 7x32 Inner Shield Drain Wire Conductor Material: TC - Tinned Copper Outer Shield Outer Shield Material: Layer Outer Shield Trade Name Type Outer Shield Material Coverage (%) 1 Beldfoil Tape Aluminum Foil-Polyester Tape 100 2 Braid TC - Tinned Copper 65 Outer Jacket Outer Jacket Material: Outer Jacket Material Nom. Wall Thickness (in.) PVC - Polyvinyl Chloride 0.048 Overall Cable Overall Nominal Diameter: 0.388 in. Pair Pair Color Code Chart: Number Color 1 Black & Red 2 Black & White 3 Black & Green 4 Black & Blue Mechanical Characteristics (Overall) Operating Temperature Range: -40C To +60C UL Temperature Rating: 60C Bulk Cable Weight: 72 lbs/1000 ft. Max. Recommended Pulling Tension: 111 lbs. Min. Bend Radius/Minor Axis: 4 in. Page 1 of 3 01-05-2017Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 8164 Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/422 & Digital Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CM CEC/C(UL) Specification: CM AWM Specification: UL Style 2493 (300 V 60C) EU Directive 2011/65/EU (ROHS II): Yes EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes Plenum/Non-Plenum Plenum (Y/N): No Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) 100 Nom. Capacitance Conductor to Conductor: Capacitance (pF/ft) 12.5 Nom. Capacitance Cond. to Other Conductor & Shield: Capacitance (pF/ft) 22 Nominal Velocity of Propagation: VP (%) 78 Nom. Conductor DC Resistance: DCR 20C (Ohm/1000 ft) 24.0 Nominal Outer Shield DC Resistance: DCR 20C (Ohm/1000 ft) 3.2 Ind. Pair Nominal Shield DC Resistance 20 Deg. C: 18 Ohm/1000 ft Max. Operating Voltage - UL: Voltage 300 V RMS Max. Recommended Current: Current 2.5 Amps per conductor 25C Notes (Overall) Notes: Datalene insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. Put Ups and Colors: Item Putup Ship Weight Color Notes Item Desc 8164 060100 100 FT 8.200 LB CHROME 4 FS PR 24 FHDPE SH PVC 8164 0601000 1,000 FT 77.000 LB CHROME C 4 FS PR 24 FHDPE SH PVC 8164 060500 500 FT 39.500 LB CHROME C 4 FS PR 24 FHDPE SH PVC Notes: C = CRATE REEL PUT-UP. Page 2 of 3 01-05-2017
