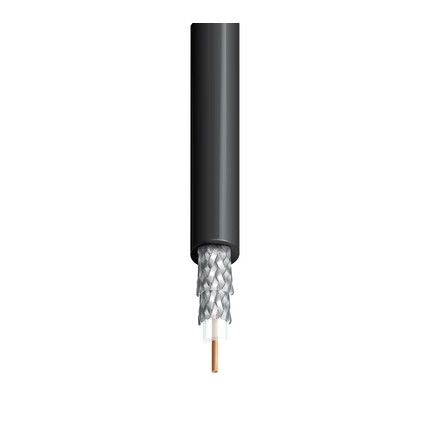

Product: 8281 75 Ohm Analog Video Coax, RG-59, 20 AWG Solid BC, Double 95% TC Braid, PE Jkt Product Description 75 Ohm Analog Video Coax, RG-59, 20 AWG Solid Bare Copper Conductor , PE Insulation, Double 95% Tinned Copper Braid Shield, PE Jacket Technical Specifications Product Overview Suitable Applications: Standard analog video Construction Details RG Type: 59 Conductor AWG Stranding Nom. Diameter Material 20 Solid 0.031 in BC - Bare Copper Insulation Material Nom. Diameter PE - Polyethylene 0.198 in Outer Shield Material Layer Outer Shield Type Material Coverage 1 Braid Tinned Copper (TC) 95% 2 Braid Tinned Copper (TC) 95% Outer Jacket Material Material Nom. Diameter PE - Polyethylene 0.305 in Electrical Characteristics Return Loss (RL) Frequency MHz Min. Return Loss dB 5 - 216 MHz 27 dB 216 - 850 MHz 23 dB Attenuation Frequency Nom. Attenuation dB/100ft 1 MHz 0.3 dB/100ft 3.6 MHz 0.5 dB/100ft 10 MHz 0.8 dB/100ft 71.5 MHz 2.1 dB/100ft 135 MHz 3.0 dB/100ft 270 MHz 4.3 dB/100ft 360 MHz 5.1 dB/100ft 540 MHz 6.3 dB/100ft 720 MHz 7.4 dB/100ft750 MHz 7.6 dB/100ft 1000 MHz 9.2 dB/100ft Electricals Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Impedence 10.8 Ohm/1000ft 1.1 Ohm/1000ft 21 pF/ft 75 Ohm Voltage Non-UL Voltage Rating 2900 V Mechanical Characteristics Temperature Operating -55C to +75C Bend Radius Installation Min. 3.1 in Bulk Cable Weight: 69 lbs/1000ft Max. Pull Tension: 134 lbs Standards and Compliance Environmental Suitability: Outdoor - Aerial, Indoor Sustainability: CA Prop 65 European Directive Compliance: EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) Plenum Number: 88281 History Update and Revision: Revision Number: 0.314 Revision Date: 08-25-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
