Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
8334 Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232 Applications
For more Information
please call
1-800-Belden1

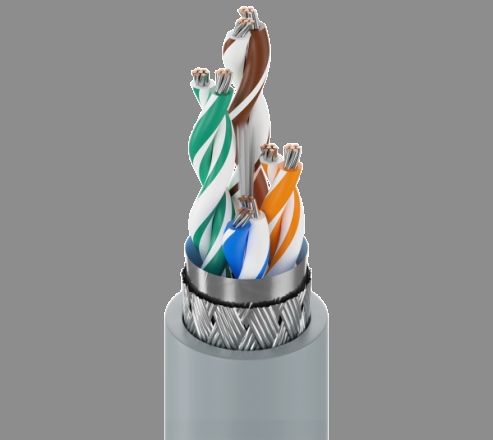

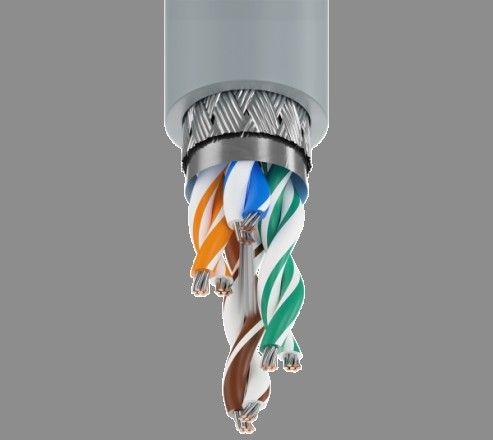

General Description:
24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, multi-paired cable with
overall Beldfoil (100% coverage) + TC braid shield (65% coverage), PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs AWG Stranding Conductor Material
4 24 7x32 TC - Tinned Copper
Total Number of Conductors: 8
Insulation
Insulation Material:
Insulation Material Wall Thickness (in.)
S-R PVC - Semi-Rigid Polyvinyl Chloride 0.011
Outer Shield
Outer Shield Material:
Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
1 Beldfoil Tape Aluminum Foil-Polyester Tape 100
2 Braid TC - Tinned Copper 65
Outer Jacket
Outer Jacket Material:
Outer Jacket Material Nom. Wall Thickness (in.)
PVC - Polyvinyl Chloride 0.035
Overall Cable
Overall Nominal Diameter: 0.272 in.
Pair
Pair Color Code Chart:
Number Color
1 White/Blue & Blue/White
2 White/Orange & Orange/White
3 White/Green & Green/White
4 White/Brown & Brown/White
Mechanical Characteristics (Overall)
Operating Temperature Range: -30C To +80C
UL Temperature Rating: 80C (UL AWM Style 2464)
Bulk Cable Weight: 44 lbs/1000 ft.
Min. Bend Radius/Minor Axis: 2.750 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
AWM Specification: UL Style 2464 (300 V 80C)
CSA Specification: AWM I A
EU Directive 2011/65/EU (ROHS II): Yes
EU CE Mark: Yes
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
Page 1 of 2 09-11-2017Detailed Specifications & Technical Data
ENGLISH MEASUREMENT VERSION
8334 Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232 Applications
EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Flame Test
UL Flame Test: UL1685 FT4 Loading
C(UL) Flame Test: FT1
CSA Flame Test: FT4
Plenum/Non-Plenum
Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
Impedance (Ohm)
75
Nom. Capacitance Conductor to Conductor:
Capacitance (pF/ft)
30
Nom. Capacitance Cond. to Other Conductor & Shield:
Capacitance (pF/ft)
50
Nominal Velocity of Propagation:
VP (%)
60
Nom. Conductor DC Resistance:
DCR @ 20C (Ohm/1000 ft)
24
Nominal Outer Shield DC Resistance:
DCR @ 20C (Ohm/1000 ft)
4.5
Max. Operating Voltage - UL:
Voltage
300 V RMS
Max. Recommended Current:
Current
1.6 Amps per conductor @ 25C
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
8334 060100 100 FT 5.100 LB CHROME 4 PR #24 PVCR SHLD PVC
8334 0601000 1,000 FT 47.000 LB CHROME C 4 PR #24 PVCR SHLD PVC
8334 060500 500 FT 23.500 LB CHROME C 4 PR #24 PVCR SHLD PVC
Notes:
C = CRATE REEL PUT-UP.
Revision Number: 3 Revision Date: 09-21-2012
