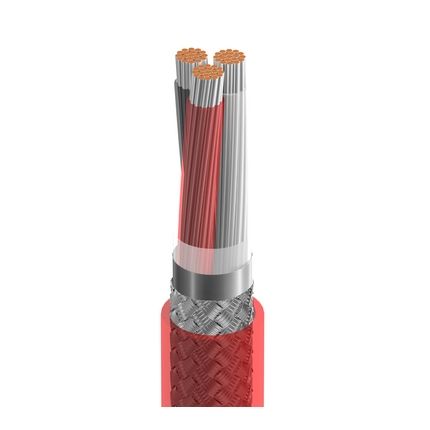

Product: 83653 Electronic, 3 C 18 Str TC, FEP Ins, OS+TC Brd, FEP Jkt, CMP Product Description High Temperature Electronic, 3 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil+Tinned Copper Braid(85%) Shield, FEP Outer Jacket, CMP Technical Specifications Product Overview extreme high/low temperature environments chemical resistant outdoor and burial applications low voltage analog signals (4-20ma, 0-10v, ...) low voltage control (24v, ) line Suitable Applications: level audio voice communications panel wiring Construction Details Conductor Element Number of Element AWG Stranding Material Conductor(s) 3 18 19x30 TC - Tinned Copper Insulation Element Material Thickness in. Color Code Conductor(s) FEP - Fluorinated Ethylene Propylene 0.007 Black, White, Red Outer Shield Material Shield Type Material Coverage Tape + Braid Alum / Poly + Tinned Copper (TC) 100% + 85% Outer Jacket Material Material Thickness Nom. Diameter FEP - Fluorinated Ethylene Propylene 0.014 in 0.180 in Cable Diameter (Nominal): 0.180 in Electrical Characteristics Electricals Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current Conductor(s) 5.8 Ohm/1000ft 33 pF/ft 60 pF/ft 5 Amps per Conductor at 25C Nom Outer Shield DCR: 3.9 Ohm/1000ft Voltage UL Voltage Rating 300 V (CMP) Mechanical Characteristics Temperature UL Rating Operating 150C -70C to +200C Bend RadiusStationary Min. Installation Min. 2 in 1.8 in Max. Pull Tension: 72 lbs Bulk Cable Weight: 35 lbs/1000ft Standards and Compliance Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial Sustainability: CA Prop 65 Flammability / Fire NFPA 262, FT6, IEC 60332-1-2 Resistance: NEC / UL Compliance: Article 800, CMP CEC / C(UL) Compliance: CMP CPR Euroclass: Eca European Directive EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) Compliance: APAC Compliance: China RoHS II (GB/T 26572-2011) Product Notes Notes: Gas Resistant History Update and Revision: Revision Number: 0.331 Revision Date: 07-31-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
