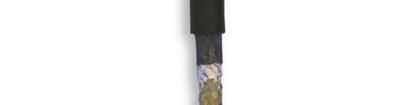

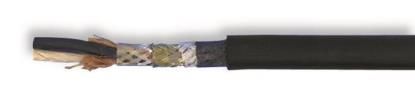

Product: 8413 Microphone Cable, 2 Conductor 24 AWG, TC Product Description 24 AWG stranded (45x40) TC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (60% coverage), cotton spiral, EPDM jacket. Technical Specifications Physical Characteristics (Overall) Conductor AWG Stranding Material Nominal Diameter No. of Conductors 24 45x40 TCA - Tinned Copper Alloy 0.024 in 2 Conductor Count: 2 Insulation Material Nominal Diameter Nominal Wall Thickness EPDM - Ethylene Propylene Diene Monomer 0.065 in 0.016 in Color Chart Number Color 1 White 2 Black Outer Shield Type Material Coverage % Tape Textile (Conductive) 100% Braid Tinned Copper (TC) 60% Outer Jacket Material Nominal Diameter Nominal Wall Thickness Separator Material EPDM - Ethylene Propylene Diene 0.199 in 0.017 in Cotton Serve Monomer Electrical Characteristics Conductor DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR 28.7 Ohm/1000ft 28.7 Ohm/1000ft 11.38 Ohm/1000ft Capacitance Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield 30 pF/ft 55 pF/ft Inductance Nominal Inductance 0.19 H/ft Impedance Nominal Characteristic Impedance55 Ohm Current Max. Recommended Current A 2.2 Amps per Conductor at 25C Voltage Non-UL Voltage Rating 300 V RMS Temperature Range Non-UL Temp Rating: 90C Operating Temp Range: -40C To +90C Mechanical Characteristics Bulk Cable Weight: 25 lbs/1000ft Max. Pull Tension: 48 lbs Min. Bend Radius/Minor Axis: 2 in Applicable Environmental and Other Programs Environmental Space: Indoor (Not Riser or Plenum) EU Directive 2011/65/EU (RoHS 2): No EU Directive 2015/863/EU (RoHS 2 amendment): No EU Directive Compliance: No EU CE Mark: No Suitability Suitability - Indoor: Yes Plenum/Non-Plenum Plenum (Y/N): No Part Number Variants Item Color Put-Up Type Length UPC 8413 010100 Black Reel 100 ft 612825206422 8413 010500 Black Reel 500 ft 612825206408 8413 010U500 Black UnReel 500 ft 612825206439 History Update and Revision: Revision Number: 0.377 Revision Date: 12-15-2021 2022 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
