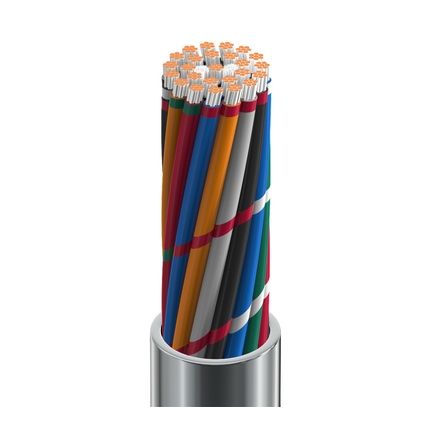

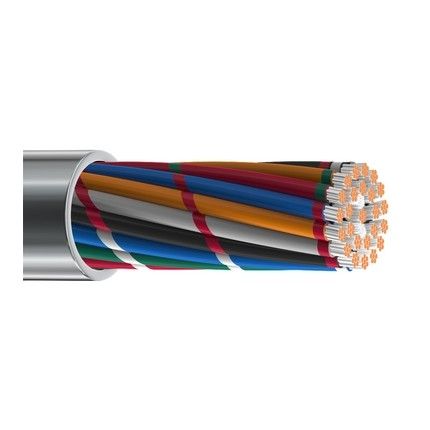

Product: 8459 Electronic, 25 C 22 Str TC, PVC Ins, PVC Jkt, CMG Product Description Electronic, 25 Conductor 22AWG (7x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG Technical Specifications Product Overview Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...) low voltage control (24v, ) line level audio voice communications panel wiring Construction Details Conductor Element Number of Element AWG Stranding Material Conductor(s) 25 22 7x30 TC - Tinned Copper Insulation Thickness Element Material Color Code in. PVC - Black, White, Red, Green, Orange, Blue, White/Black Stripe, Red/Black Stripe, Green/Black Stripe, Orange/Black Stripe, Blue/Black Stripe, Black/White Stripe, Conductor(s) Polyvinyl 0.011 Red/White Stripe, Green/White Stripe, Blue/White Stripe, Black/Red Stripe, White/Red Stripe, Orange/Red Stripe, Blue/Red Stripe, Red/Green Stripe, Chloride Orange/Green Stripe, Black/White/Red Stripes, White/Black/Red Stripes, Red/Black/White Stripes, Green/Black/White Stripes Outer Jacket Material Material Thickness Nom. Diameter PVC - Polyvinyl Chloride 0.040 in 0.387 in Cable Diameter (Nominal): 0.387 in Electrical Characteristics Electricals Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current Conductor(s) 15.6 Ohm/1000ft 34 pF/ft 1.5 Amps per Conductor at 25C Voltage UL Voltage Rating 300 V (CMG), 150 V (UL AWM 2576) Mechanical Characteristics Temperature UL Rating Operating 80C (UL AWM 2576) -20C to +80C Bend Radius Stationary Min. Installation Min. 4 in 3.9 in Max. Pull Tension: 228 lbs Bulk Cable Weight: 101 lbs/1000ftStandards and Compliance Environmental Suitability: Indoor Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, IEC 60332-1-2 NEC / UL Compliance: Article 800, CMG AWM Compliance: 2576 CEC / C(UL) Compliance: CMG CPR Euroclass: Eca European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) History Update and Revision: Revision Number: 0.323 Revision Date: 07-31-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
