Product: 8538

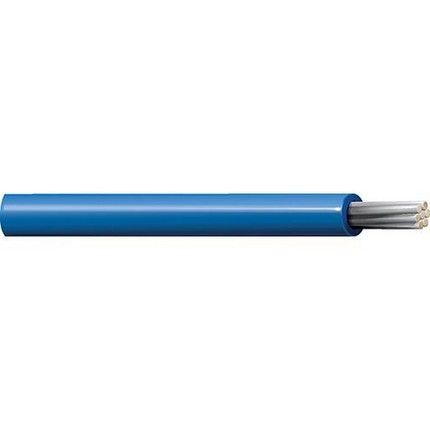

Lead Wire, #24 Sol TC, PVC Ins, TYPE MW MIL-W-76C-PVC
Product Description
Low Temp Plastic Lead Wire, 24AWG (Solid) Tinned Copper, PVC Insulation, TYPE MW MIL-W-76C-PVC 1000V 80C
Technical Specifications
Product Overview
Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, (Type MW) MIL-W-76C-Low Temp applications
Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
24 Solid TC - Tinned Copper 1
Conductor Count: 1
Insulation
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.055 in 0.017 in
Electrical Characteristics
Voltage
UL Voltage Rating
1000 V RMS
Temperature Range
Non-UL Temp Rating: 80C
Mechanical Characteristics
Bulk Cable Weight: 2 lbs/1000ft
Standards
Military Compliance: MIL-W-76C Type MWP
Applicable Environmental and Other Programs
EU Directive 2000/53/EC
Yes
(ELV):
EU Directive 2003/96/EC
Yes
(BFR):
EU Directive 2011/65/EU
Yes
(ROHS II):
EU Directive 2012/19/EU
Yes
(WEEE):
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: YesEU RoHS Compliance Date
2005-10-01
(yyyy-mm-dd):
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes
Flammability, LS0H, Toxicity Testing
UL voltage rating: N/A
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color Putup Type Length UPC
8538 010100 Black Reel 100 ft 612825213147
8538 009100 White Reel 100 ft
8538 0091000 White Reel 1,000 ft 612825213130
P - STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M= FOR 1 OR 2 STRIPES. 10,000' MINIMUM ORDER FOR COLOR COMBINATION.
Footnote:
PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL, WITH A MINIMUM LENGTH OF 100'.
History
Update and Revision: Revision Number: 0.281 Revision Date: 07-26-2020
