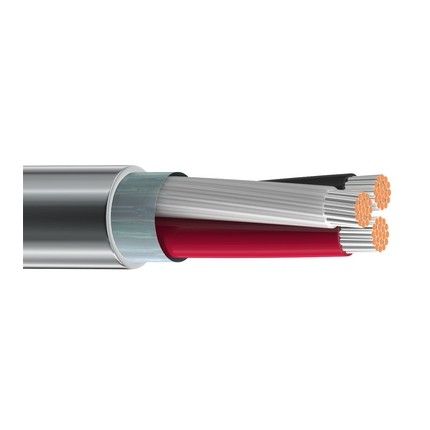

Product: 8618 Electronic, 3 C 16 Str TC, PE Ins, OS, PVC Jkt, CL3 Product Description Electronic, 3 Conductor 16AWG (19x29) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CL3 Technical Specifications Product Overview Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...) low voltage control (24v, ) line level audio voice communications panel wiring Construction Details Conductor Element Number of Element AWG Stranding Material Conductor(s) 3 16 19x29 TC - Tinned Copper Insulation Element Material Thickness in. Color Code Conductor(s) PE - Polyethylene 0.032 Black, Red, Clear Outer Shield Material Shield Type Material Coverage Drainwire Type Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (16x30) TC Outer Jacket Material Material Thickness Nom. Diameter PVC - Polyvinyl Chloride 0.031 in 0.327 in Cable Diameter (Nominal): 0.327 in Electrical Characteristics Electricals Nom. Conductor Element Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current DCR Conductor(s) 4.8 Ohm/1000ft 26 pF/ft 50 pF/ft 7 Amps per Conductor at 25C Voltage UL Voltage Rating 600 V (UL AWM 20253), 300 V (CL3) Mechanical Characteristics Temperature UL Rating Operating 80C (UL AWM 20253) -20C to +80C Bend Radius Stationary Min. Installation Min. 3.5 in 3.3 inMax. Pull Tension: 110 lbs Bulk Cable Weight: 60 lbs/1000ft Standards and Compliance Environmental Suitability: Indoor Sustainability: CA Prop 65 Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2 NEC / UL Compliance: Article 725, CL3 AWM Compliance: 20253 CPR Euroclass: Eca European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) History Update and Revision: Revision Number: 0.344 Revision Date: 08-25-2020 2020 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
