Product: 8737
Audio Cable, #22-1pr, TC, O/A Braid, CM
Product Description

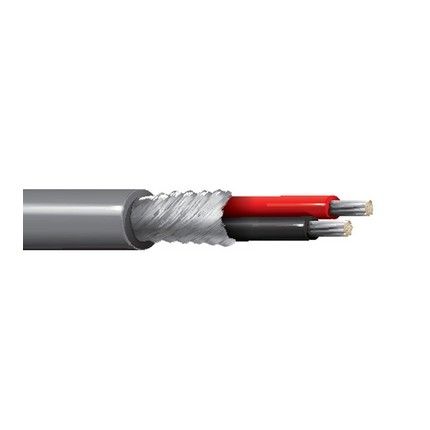

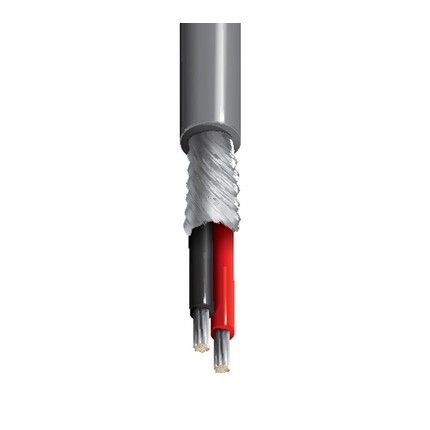

22 AWG stranded (7x30) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
Technical Specifications
Product Overview
Suitable Applications: low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, ); line level audio; computer communication; panel wiring
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7x30 TC - Tinned Copper 0.03 in 1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.06 in 0.015 in
Color Chart
Number Color
1 Black & Red
Outer Shield Material
Type Material Coverage [%]
Spiral Serve / Screen Tinned Copper (TC) 85%
Outer Jacket Material
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.18 in 0.025 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR
16 Ohm/1000ft 16 Ohm/1000ft 11.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
40 pF/ft 70 pF/ft
Inductance
Nominal Inductance
0.17 H/ft
ImpedanceNominal Characteristic Impedance
49 Ohm
Current
Max. Recommended Current [A]
3 Amps per Conductor at 25C
Voltage
UL Voltage Rating
300 V RMS
Temperature Range
UL Temp Rating: 80C
Operating Temp Range: -20C To +80C
Mechanical Characteristics
Bulk Cable Weight: 18 lbs/1000ft
Max. Pull Tension: 20 lbs
Min Bend Radius/Minor Axis: 1.75 in
Standards
NEC/(UL) Compliance: CMG
CEC/C(UL) Compliance: CMG
UL AWM Style Compliance: UL Style 2095 (300 V 80C)
Applicable Environmental and Other Programs
Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
CSA Flammability: FT4
UL voltage rating: 300 V RMS
Plenum/Non-Plenum
Plenum (Y/N): No
Part Number
Variants
Item # Color Putup Type Length UPC
8737 060500 Chrome Reel 500 ft 612825214847
8737 060U500 Chrome UnReel 500 ft 612825215103
8737 0601000 Chrome Reel 1,000 ft 612825214830
8737 060U1000 Chrome UnReel 1,000 ft 612825214816
8737 0605000 Chrome Reel 5,000 ft 612825214809
Footnote: C - CRATE REEL PUT-UP.
History
Update and Revision: Revision Number: 0.244 Revision Date: 08-25-2020
