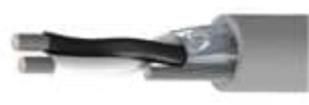

Product: 8761MN SpaceMaker, 2 C 22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937 Product Description SpaceMaker, 2 Conductor 22AWG (19x34) Tinned Copper, PO Insulation, Overall Beldfoil Shield, PVC Outer Jacket, AWM 2937 Technical Specifications Construction Details Conductor Element Number of Element Size Stranding Material Pair(s) 1 22 AWG 19x34 TC - Tinned Copper Insulation Element Material Nom. Thickness Nom. Insulation Diameter Color Code Pair(s) PP - Polypropylene 0.01 in (0.25 mm) 0.050 in (1.3 mm) Black & White Outer Shield Shield Type Material Coverage Drainwire Type Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (19x36) TC Outer Jacket Material Nom. Thickness Nom. Diameter PVC - Polyvinyl Chloride 0.016 in (0.41 mm) 0.135 in Overall Cable Diameter (Nominal): 0.135 in Electrical Characteristics Electricals Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Max. Current 18.1 Ohm/1000ft 28.8 pF/ft (94.5 pF/m) 55.9 pF/ft (183 pF/m) 51 Ohm 4.64 Amps per Conductor at 25C Voltage UL Voltage Rating 300 V Mechanical Characteristics Temperature UL Temperature Operating 80C -20C To +80C Bend Radius Stationary Min. Installation Min. 1.350 in (34.29 mm) 1.350 in Max. Pull Tension: 15.4 lbs Bulk Cable Weight: 11 lbs/1000ft Standards and ComplianceEnvironmental Suitability: Indoor Flammability / Reaction to Fire: FT2 AWM Compliance: UL AWM Style 2937 European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) Other Standard Compliance(s): NFPA 79 History Update and Revision: Revision Number: 0.320 Revision Date: 12-21-2021 Variants Item Color UPC 8761MN 006100 Blue, Light 612825386032 8761MN 0061000 Blue, Light 612825386049 8761MN 008100 Gray 612825386056 8761MN 0081000 Gray 612825382737 8761MN 004100 Yellow 612825386018 8761MN 0041000 Yellow 612825386025 2022 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
