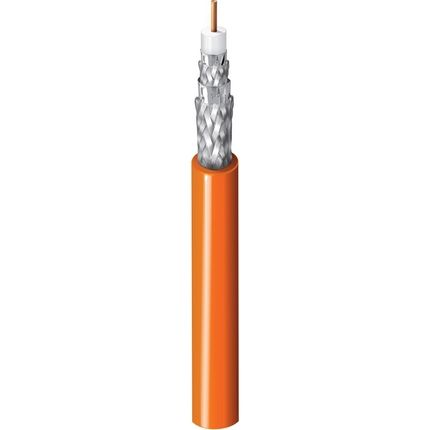

Product: 89880
50, #12 Sol BC, FFEP Ins, Duobond IV quad shield, PVDF Jkt, CMP
Product Description
Ethernet 50 10BASE5, 12 AWG solid bare copper conductor, foam FEP insulation, Overall Duobond II+Tinned Copper Braid (90%)+Duofoil+Tinned
Copper Braid(90%) Shield, fluorocopolymer jacket, CMP
Technical Specifications
Product Overview
Suitable Applications: Thick Ethernet (IEEE 802.3 10BASE5)
Construction Details
Conductor
AWG Stranding Nom. Diameter Material
12 Solid 0.086 in BC - Bare Copper
Insulation
Material Nom. Diameter
FEP - Fluorinated Ethylene Propylene (Foam) 0.245
Outer Shield Material
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond II 100%
2 Braid Tinned Copper (TC) 90%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil 100%
4 Braid Tinned Copper (TC) 90%
Outer Jacket Material
Material Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.365 in
Electrical Characteristics
Attenuation
Frequency Nom. Attenuation [dB/100ft]
1 MHz 0.18 dB/100ft
5 MHz 0.37 dB/100ft
10 MHz 0.52 dB/100ft
50 MHz 1.15 dB/100ft
100 MHz 1.65 dB/100ft
200 MHz 2.45 dB/100ft
400 MHz 3.80 dB/100ft
700 MHz 5.60 dB/100ft
900 MHz 6.80 dB/100ft
1000 MHz 7.20 dB/100ft
Power Rating
Frequency [MHz] Max. Power Rating [W]1 MHz 15,900 W
5 MHz 6,928 W
10 MHz 4,802 W
50 MHz 1,992 W
100 MHz 1,344 W
200 MHz 900 W
400 MHz 602 W
700 MHz 438 W
900 MHz 382 W
1,000 MHz 361 W
Electricals
Nom. Conductor
Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Impedence Nom. Velocity
DCR
1.4 Ohm/1000ft 1.5 Ohm/1000ft 26.0 pF/ft 50 Ohm 78%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Rating Operating
150C -25C to +150C
Bend Radius
Installation Min.
6.0 in
Bulk Cable Weight: 137 lbs/1000ft
Max. Pull Tension: 255 lbs
Standards and Compliance
Environmental Suitability: Indoor - Plenum, Indoor
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, NFPA 262, FT6
NEC / UL Compliance: CL2P, CMP
CEC / C(UL) Compliance: CMP
IEEE Compliance: 802.3 10Base5
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): DEC Part No. 17-00324-00
Non-Plenum Number: 9880
Product Notes
Notes: Ring-band stripes every 2.5 meters to aid users in tap placement.
History
Update and Revision: Revision Number: 0.277 Revision Date: 07-28-2020
