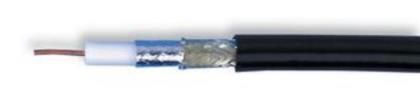

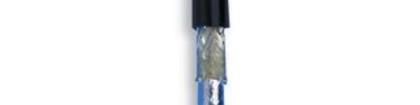

TECHNICAL DATA SHEET code 9116E Version 1 Date 2012-03-27 Coax RG6 AL PVC page 1/5 APPLICATION Coaxial cables used in cabled distribution networks designed according the European Standard EN 50117-2-1/2 operating at frequencies between 5 MHz and 1000 MHz and the International Standard IEC 1196. 1 2 3.1 3.2 4 CONSTRUCTION 1 Inner conductor Copper Clad steel 2 Dielectric Gas injected PE 3.1 Foil AL-PET bonded 3.2 Braid Aluminum 4 Sheath PVC REQUIREMENTS Test methods in accordance with European standard EN 50117-1. Mechanical characteristics 1. Inner conductor: Diameter: 1.02 0.05 mm 2. Dielectric: Diameter: 4.6 0.2 mm Adhesion: 5 to 80N 25mm 3. Outer conductor: Nominal diameter screen: 5.25 mm Foil overlap: 1 mm Coverage braid: 56 % 5 % 4. Sheath coax: Material: PVC Diameter: 6.9 0.2 mm 2 Tensile strength: 12.5 N/mm Elongation at break: 150 % 5. Cable Crush resistance of cable: < 1% (load of 700N) Storage/operating temperature: -40C to +70C Minimum static bend radius: 70 mm Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET code 9116E Version 1 Date 2012-03-27 Coax RG6 AL PVC page 2/5 Electrical characteristics single coax Mean characteristic impedance 75 3 W DC resistance inner conductor: 105 W/km DC resistance outer conductor: 51 W/km Capacitance: nominal 54 pF/m Velocity ratio: 0.82+/-0.02 4 Insulation resistance: > 10 MW.km Voltage test of dielectric: 2 kVdc Screening efficiency 50-650 MHz: 65 dB 650-1000 MHz: 75 dB Return loss at 5-470 MHz: 20 dB* 470-1000 MHz: 18 dB* *Max. 3 peak values 4 dB lower than specified. Attenuation at Nominal Attenuation at Nominal 5 MHz: 2.8 dB/100m 400 MHz: 13.0 dB/100m 50 MHz: 4.9 dB/100m 600 MHz: 16.3 dB/100m 100 MHz: 6.5 dB/100m 800 MHz: 18.9 dB/100m 200 MHz: 9.0 dB/100m 1000 MHz: 21.8 dB/100m Maximum attenuation is 10% higher. Rev. Description Date Initials number 1 Introduction of specification 27-03-2012 PBo Belden declares this product to be in compliance with the environmental regulations EU RoHS (Directive 2002/95/EC, 27 January 2003) this is valid for all material produced after the RoHS compliant date for this product. Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
