X-On Electronics has gained recognition as a prominent supplier of 9503 060U100 Multi-Conductor Cables across the USA, India, Europe, Australia, and various other global locations. 9503 060U100 Multi-Conductor Cables are a product manufactured by Belden. We provide cost-effective solutions for Multi-Conductor Cables, ensuring timely deliveries around the world.

9503 060U100 Belden

Name: 9503 060U100
Brand: Belden
SKU: 9503060U100_Belden
Availability: InStock
Rating: 5 (11 reviews)

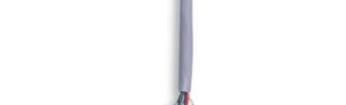

9503 060U100 electronic component of Belden

Images are for reference only
See Product Specifications

Part No.	9503 060U100
Manufacturer:	Belden
Category:	Multi-Conductor Cables
Description:	CABLE, 9503, 3PAIR, 30.5M
Datasheet:	9503 060U100 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 156.8331 ea
Line Total: USD 156.83

Availability - 2
Ship by Mon. 25 Nov to Fri. 29 Nov

MOQ: 1 Multiples: 1
Pack Size: 1

9503 060U100 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

2

Ship by Mon. 25 Nov to Fri. 29 Nov

MOQ : 1
Multiples : 1

1 : USD 156.8331

Specifications

Manufacturer
Belden Belden

Product Category
Multi-Conductor Cables Multi-Conductor Cables

Jacket Colour
Chrome Chrome

Jacket Material
PVC PVC

Conductor Material
Tinned Copper Tinned Copper

Voltage Rating
300 V 300 V

Brand
Belden Belden

Cable Shielding
Screened Screened

No. Of Pairs
3 Pair 3 Pair

Wire Gauge
24AWG 24AWG

Conductor Area Csa
0.2Mm² 0.2Mm²

Reel Length Imperial
98.43 ft 98.43 ft

Reel Length Metric
30 m 30 m

No. Of Max Strands X Strand Size
7 X 0.2Mm 7 X 0.2Mm

External Diameter
5.89 mm 5.89 mm

Svhc
No SVHC (15 - Jan - 2018) No SVHC (15 - Jan - 2018)

Alpha Type Number
5473C EQUIVALENT 5473C EQUIVALENT

Approval Bodies
UL UL

Belden Type Number
9503 9503

Cable Type
Foil Shield Foil Shield

Cable Ul Style Number
UL2464 UL2464

Complex Cable Make-Up
6 X 7/32 6 X 7/32

Conductor Make-Up
7 / 32AWG 7 / 32AWG

Core - Core Capacitance
98 pF /m 98 pF /m

Core-Screen Capacitance
164 pF /m 164 pF /m

Current Rating
1.76 A 1.76 A

Drain Wire Type
Tinned Copper Tinned Copper

No. Of Cores
6Core 6Core

Outer Diameter
5.89 mm 5.89 mm

Primary Conductor Resistance
78.7 Ohms /km 78.7 Ohms /km

Screen Resistance
55.8 Ohms /km 55.8 Ohms /km

Screen Type Primary
Aluminum Polyester Aluminum Polyester

Secondary Insulation Colour
Chrome Chrome

Secondary Insulation Material
PVC PVC

Wire Size
24AWG 24AWG

Notes:- Show Stocked Products With Similar Attributes.

9503 060U100 Alternative Parts
