9504 060U100 Belden

Name: 9504 060U100
Brand: Belden
SKU: 9504060U100_Belden
Availability: OutOfStock
Rating: 5 (11 reviews)

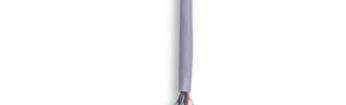

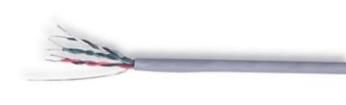

9504 060U100 electronic component of Belden

Images are for reference only
See Product Specifications

Part No.	9504 060U100
Manufacturer:	Belden
Category:	Multi-Conductor Cables
Description:	CABLE, 9504, 4PAIR, 30.5M
Datasheet:	9504 060U100 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 191.318 ea
Line Total: USD 191.32

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

9504 060U100 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Mon. 30 Dec to Fri. 03 Jan MOQ : 1 Multiples : 1	1 : USD 191.318 5 : USD 173.6075 10 : USD 170.0607

Specifications

Manufacturer Belden Belden
Product Category Multi-Conductor Cables Multi-Conductor Cables
Jacket Colour Chrome Chrome
Jacket Material PVC PVC
Conductor Material Tinned Copper Tinned Copper
Voltage Rating 300 V 300 V
Brand Belden Belden
Cable Shielding Screened Screened
No. Of Pairs 4 Pair 4 Pair
Wire Gauge 24AWG 24AWG
Conductor Area Csa 0.2Mm² 0.2Mm²
Reel Length Imperial 98.43 ft 98.43 ft
Reel Length Metric 30 m 30 m
No. Of Max Strands X Strand Size 7 X 0.2Mm 7 X 0.2Mm
External Diameter 6.73 mm 6.73 mm
Svhc No SVHC (15 - Jan - 2018) No SVHC (15 - Jan - 2018)
Alpha Type Number 5474C EQUIVALENT 5474C EQUIVALENT
Approval Bodies UL UL
Belden Type Number 9504 9504
Cable Type Foil Shield Foil Shield
Cable Ul Style Number UL2464 UL2464
Complex Cable Make-Up 8 X 7/32 8 X 7/32
Conductor Make-Up 7 / 32AWG 7 / 32AWG
Core - Core Capacitance 98 pF /m 98 pF /m
Core-Screen Capacitance 164 pF /m 164 pF /m
Current Rating 1.5 A 1.5 A
Drain Wire Type Tinned Copper Tinned Copper
No. Of Cores 8Core 8Core
Outer Diameter 6.73 mm 6.73 mm
Primary Conductor Resistance 78.7 Ohms /km 78.7 Ohms /km
Screen Resistance 55.8 Ohms /km 55.8 Ohms /km
Screen Type Primary Aluminium Polyester Aluminium Polyester
Secondary Insulation Colour Chrome Chrome
Secondary Insulation Material PVC PVC
Wire Size 24AWG 24AWG
