X-On Electronics has gained recognition as a prominent supplier of 9515 Multi-Conductor Cables across the USA, India, Europe, Australia, and various other global locations. 9515 Multi-Conductor Cables are a product manufactured by Belden. We provide cost-effective solutions for Multi-Conductor Cables, ensuring timely deliveries around the world.

9515 Belden

Name: 9515
Brand: Belden
SKU: 9515_Belden
Availability: OutOfStock
Rating: 5 (11 reviews)

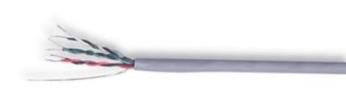

Images are for reference only
See Product Specifications

Part No.	9515
Manufacturer:	Belden
Category:	Multi-Conductor Cables
Description:	CABLE, 9515, 15PAIR, PER M
Datasheet:	9515 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 72.0225 ea
Line Total: USD 72.02

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

9515 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Thu. 28 Nov to Wed. 04 Dec MOQ : 1 Multiples : 1	1 : USD 72.0225

Specifications

Manufacturer Belden Belden
Product Category Multi-Conductor Cables Multi-Conductor Cables
Jacket Colour chrome chrome
Jacket Material pvc pvc
Conductor Material tinned copper tinned copper
Voltage Rating 300 V 300 V
No Of Pairs 15 15
Wire Gauge 24awg 24awg
Conductor Area Csa 0.2mm² 0.2mm²
No Of Max Strands X Strand Size 7 x 0.2 mm 7 x 0.2 mm
Reel Length Imperial - -
Reel Length Metric - -
External Diameter 10.5 mm 10.5 mm
Svhc no svhc (15 - jun - 2015) no svhc (15 - jun - 2015)
Alpha Type Number 5480/15c equivalent 5480/15c equivalent
Approval Bodies ul ul
Belden Type Number 9515 9515
Cable Type foil shield foil shield
Cable Ul Style Number ul2464 ul2464
Complex Cable Make-Up 30 x 7/32 30 x 7/32
Conductor Make-Up 7 / 32awg 7 / 32awg
Core - Core Capacitance 98 pF /m 98 pF /m
Core-Screen Capacitance 164 pF /m 164 pF /m
Current Rating 1.1 A 1.1 A
Drain Wire Type tinned copper tinned copper
No Of Conductors 30 30
No Of Cores 30 30
Outer Diameter 10.5 mm 10.5 mm
Primary Conductor Resistance 78.7 Ohms /km 78.7 Ohms /km
Screen Resistance 54.1 Ohms /km 54.1 Ohms /km
Screen Type Primary aluminium / polyester aluminium / polyester
Secondary Insulation Colour chrome chrome
Secondary Insulation Material pvc pvc
Wire Size 24 AWG 24 AWG

We are delighted to provide the 9515 from our Multi-Conductor Cables category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the 9515 and other electronic components in the Multi-Conductor Cables category and beyond.

More Products By Manufacturer "Belden"

Image	Part-Description
Hot	1035A 0101000 Multi-Conductor Cables 16AWG 1PR UNSHLD 1000ft SPOOL BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1035A-BLK-1000 Power Limited Tray Cable - 1 Pair - 16 AWG - 7x24 Strands - 300V - 1000ft - Black. Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A-BLK-1000 TRAY CABLE, 1 TRIAD, 18AWG STRAND (7X26), PVC INSULATION, INSTRUMENTATION BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A 0101000 Multi-Conductor Cables 20AWG 1PR SHIELD 1000ft SPOOL BLACK Stock : 210 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A-BLK-1000 Tray Cable 2Conductors 20AWG 5.4mm 300VAC Black 304.8m Reel Stock : 2 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A 0101000 Multi-Conductor Cables 18AWG 1TR SHIELD 1000FT SPOOL BLACK Stock : 7 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX13 D151000 Multi-Conductor Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX44 0061000 Multi-Conductor Cables CAT6A 4PRB U/UTP LSZH Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1034A 0101000 Multi-Conductor Cables 3 #16 PVC PVC Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GXS32 0091000 Multi-Conductor Cables CAT6A 4PRB U/UTP CMR Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Multi-Conductor Cables"

Image	Part-Description
Hot	83008-WHT-1000 #20 STR TFE WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-BLU-U1000 CAT5E+ 4PRB U/UTP CMP BOX Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1701A-D15-U1000 Multi-Conductor Cables 24AWG 4PR SOLID 1000ft BOX BLUE Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	32820-WHT-5000 #20 STR PVC WHT Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A-LT-BLU-1000 Enhanced Cat 5e DataTuff Twisted Pair Cables, 4-Pair Heavy-Duty Sunlight & Oil-Resistant Jackets, Unjacketed, MSHA Approved Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	11700A 0061000 Multi-Conductor Cables 4 PR #24 PP FR PVC PVC Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1121-24-2/9-9 Multi-Conductor Cables 44A1121-24-2/9-9 PRICE PER FOOT Stock : 420 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	44A1131-24-0/2/9-9-US High Performance Cable 3Conductors 24AWG 3.15mm 600VAC White Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	382121-006 CABLE, RADIATION-CROSSLINKED, POLYALKENE-INSULATED, THREE CONDUCTOR, SHIELDED, JACKETED, LIGHTWEIGHT, GENERAL PURPOSE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	6-219538-2 Unshielded Twisted Pair Cable 8Conductors 24AWG 304.8m Bare Copper Box Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

9515 Paired - Computer Cable for EIA RS-232 Applications For more information please call 1-800-Belden1 See Put-ups and Colors Related Documents : No. 3 for Paired Cables (Belden Standard).pdf Description: 24 AWG stranded (7x32) TC conductors, semi-rigid PVC insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire (continued), PVC jacket. PHYSICAL CHARACTERISTICS: CONDUCTOR: Number of Pairs 15 Total Number of Conductors 30 AWG 24 Stranding 7x32 Conductor Material TC - Tinned Copper INSULATION: Insulation Material S-R PVC - Semi-Rigid Polyvinyl Chloride Pair Color Code Chart : Number Color Number Color 1 Black & Red 9 Red & Green 2 Black & White 10 Red & Blue 3 Black & Green 11 Red & Yellow 4 Black & Blue 12 Red & Brown 5 Black & Yellow 13 Red & Orange 6 Black & Brown 14 Green & White 7 Black & Orange 15 Green & Blue 8 Red & White OUTER SHIELD: Outer Shield Material Trade Name Beldfoil Outer Shield Type Tape Outer Shield Material Aluminum Foil-Polyester Tape w/Shorting Fold Outer Shield %Coverage 100 % Page 1 of 39515 Paired - Computer Cable for EIA RS-232 Applications OUTER SHIELD DRAIN WIRE : Outer Shield Drain Wire AWG 24 Outer Shield Drain Wire Stranding 7x32 Outer Shield Drain Wire Conductor Material TC - Tinned Copper OUTER JACKET: Outer Jacket Material PVC - Polyvinyl Chloride OVERALL NOMINAL DIAMETER: Overall Nominal Diameter .417 in. MECHANICAL CHARACTERISTICS: Operating Temperature Range -30C To +80C Non-UL Temperature Rating 80C (UL AWM Style 2464) Bulk Cable Weight 95.1 lbs/1000 ft. Max. Recommended Pulling Tension 165 lbs. Min. Bend Radius (Install) 4.17 in. APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE: APPLICABLE STANDARDS: NEC/(UL) Specification CMG CEC/C(UL) Specification CMG AWM Specification UL Style 2464 (300 V 80C) CSA Specification AWM I A EU CE Mark (Y/N) Yes EU RoHS Compliant (Y/N) Yes EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005 FLAME TEST: UL Flame Test UL1685 FT4 Loading C(UL) Flame Test FT4 PLENUM/NON-PLENUM: Plenum (Y/N) N ELECTRICAL CHARACTERISTICS: Nom. Characteristic Impedance 75 Ohms Nom. Capacitance Conductor to Conductor 1 KHz 30 pF/ft Nom. Cap. Cond. to Other Cond. & Shield 1 KHz 50 pF/ft Nominal Velocity of Propagation 60 % Nom. Conductor DC Resistance 20 Deg. C 24 Ohms/1000 ft Nominal Outer Shield DC Resistance 20 Deg. C 16.5 Ohms/1000 ft Max. Operating Voltage - UL 300 V RMS (UL AWM Style 2464) Page 2 of 3
