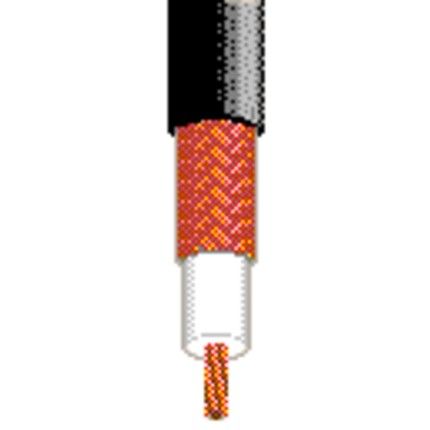

Product: 9659 Analog Video, RG59, 22 Str BC, 95% BC Braid, PVC Jacket, CMX Product Description 22 AWG stranded (7x30) .030 bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket. Technical Specifications Physical Characteristics (Overall) Conductor AWG Stranding Material Nominal Diameter No. of Coax 22 7x30 BC - Bare Copper 0.03 in 1 Conductor Count: 1 Insulation Material Nominal Diameter PE - Polyethylene (Foam) 0.146 in Outer Shield Material Type Material Coverage % Braid Bare Copper (BC) 95% Outer Jacket Material Material Nominal Diameter PVC - Polyvinyl Chloride (Non-Contaminating) 0.242 in Electrical Characteristics Conductor DCR Nominal Conductor Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR DCR 15 Ohm/1000ft 15 Ohm/1000ft 2.6 Ohm/1000ft 2.6 Ohm/1000ft Capacitance Nom. Capacitance Conductor to Shield 17.3 pF/ft Inductance Nominal Inductance 0.09 H/ft Impedance Nominal Characteristic Impedance 75 Ohm Return Loss (RL) Frequency MHz Minimum Return (RL) 5-450 MHz 23 dB High Frequency (Nominal/Typical)Frequency MHz Nom. Insertion Loss 1 MHz 0.3 dB/100ft 10 MHz 0.9 dB/100ft 50 MHz 2.1 dB/100ft 100 MHz 3 dB/100ft 200 MHz 4.5 dB/100ft 400 MHz 6.6 dB/100ft 700 MHz 8.9 dB/100ft 900 MHz 10.1 dB/100ft 1000 MHz 10.9 dB/100ft Delay Nominal Delay 1.3 ns/ft Voltage Non-UL Voltage Rating UL Voltage Rating 300 V RMS 150 V RMS Temperature Range Operating Temp Range: -40C To +80C Mechanical Characteristics Bulk Cable Weight: 35 lbs/1000ft Max. Pull Tension: 65 lbs Min Bend Radius/Minor Axis: 2.5 in Standards NEC/(UL) Compliance: CMX CEC/C(UL) Compliance: CMX UL AWM Style Compliance: UL Style 1354 (30 V 60C) RG Type: 59/U Type Series Type: 59 Applicable Environmental and Other Programs Environmental Space: Indoor/Outdoor EU Directive 2000/53/EC (ELV): Yes EU Directive 2003/11/EC (BFR): Yes EU Directive 2011/65/EU (ROHS II): Yes EU Directive 2012/19/EU (WEEE): Yes EU Directive 2015/863/EU: Yes EU Directive Compliance: EU Directive 2003/11/EC (BFR) EU CE Mark: Yes EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01 MII Order 39 (China RoHS): Yes Suitability Suitability - Indoor: Yes Suitability - Outdoor: Yes Flammability, LS0H, Toxicity Testing UL Flammability: VW-1 CSA Flammability: FT1 UL voltage rating: 150 V RMS Plenum/Non-Plenum Plenum (Y/N): No Part Number
