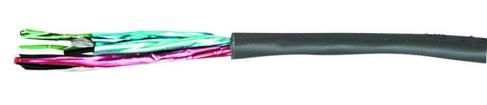

Product: 9773 Audio, Control & Instrument, 18-3pr, PO, Indiv. Foil, PVC Jkt, CM Product Description Audio, Control & Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 3 twisted pairs, individually shielded with Beldfoil (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket. Technical Specifications Product Overview Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, ...) Low Voltage Digital Control (24v, ) Line Level Audio Computer Communication Panel Wiring Construction Details Conductor Element Number of Element Size Stranding Material Pair(s) 3 18 AWG 19x30 TC - Tinned Copper Insulation Element Material Nom. Thickness Color Code Pair(s) PP - Polypropylene 0.019 in (0.48 mm) Black & Red, Black & White, Black & Green Inner Shield Element Shield Type Material Coverage Drainwire Type Notes Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7x28) TC each pair Outer Jacket Material Nom. Thickness Nom. Diameter PVC - Polyvinyl Chloride 0.035 in (0.89 mm) 0.404 in (10.3 mm) Overall Cable Diameter (Nominal): 0.404 in (10.3 mm) Electrical Characteristics Electricals Nom. Capacitance Nom. Capacitance Cond-to-Other (Conds + Nom. Characteristic Nom. Velocity of Element Nom. Conductor DCR Max. Current Cond-to-Cond Shield) Impedence Prop. 6.4 Ohm/1000ft (21 3.6 Amps per Conductor at Pair(s) 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 50 Ohm 66% Ohm/km) 25C Voltage UL Voltage Rating 300 V (CM), 30 V (UL AWM 2929) Mechanical Characteristics Temperature UL Temperature Operating 80C (UL AWM 2919) -20C to +80C Bend Radius Stationary Min. Installation Min.4.0 in (100 mm) 4.0 in (100 mm) Max. Pull Tension: 186 lbs Bulk Cable Weight: 84 lbs/1000ft (130 kg/km) Standards and Compliance Environmental Suitability: Indoor Flammability / Reaction to Fire: UL1685 UL Loading, IEC 60332-1-2 CPR Compliance: CPR Euroclass: Eca NEC / UL Compliance: Article 800, CM AWM Compliance: 2919 CEC / C(UL) Compliance: CM European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) APAC Compliance: China RoHS II (GB/T 26572-2011) History Update and Revision: Revision Number: 0.381 Revision Date: 12-15-2021 Variants Item Color Putup Type Length UPC 9773 060100 Chrome Reel 100 ft 612825258469 9773 060500 Chrome Reel 500 ft 612825258483 9773 0601000 Chrome Reel 1,000 ft 612825258476 9773 0605000 Chrome Reel 5,000 ft 612825258490 2022 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
