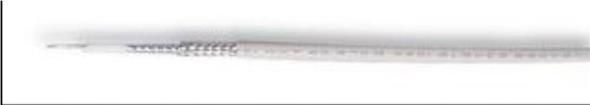

Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 9907 Coax - Coaxial Cable - Thinnet 10Base2 Ethernet For more Information please call 1-800-Belden1 General Description: 20 AWG stranded (19x32) .037 tinned copper conductor, foam polyethylene insulation, Duobond II (100% coverage) plus an overall tinned copper braid shield (93% coverage), PVC jacket. Usage (Overall) Suitable Applications: Thin Ethernet Physical Characteristics (Overall) Conductor AWG: Coax AWG Stranding Conductor Material Dia. (in.) 1 20 19x32 TC - Tinned Copper .037 Total Number of Conductors: 1 Insulation Insulation Material: Insulation Material Dia. (in.) FHDPE - Foam High Density Polyethylene .102 Outer Shield Outer Shield Material: Layer Outer Shield Trade Name Type Outer Shield Material Coverage (%) 1 Bonded Duofoil Tape Bonded Aluminum Foil-Polyester Tape-Aluminum Foil 100 2 Braid TC - Tinned Copper 93 Outer Jacket Outer Jacket Material: Outer Jacket Material PVC - Polyvinyl Chloride Overall Cable Overall Nominal Diameter: 0.185 in. Mechanical Characteristics (Overall) Operating Temperature Range: -40C To +80C UL Temperature Rating: 60C (UL AWM Style 1354) Bulk Cable Weight: 23 lbs/1000 ft. Max. Recommended Pulling Tension: 45 lbs. Min. Bend Radius/Minor Axis: 2 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs NEC/(UL) Specification: CL2, CM CEC/C(UL) Specification: CM AWM Specification: UL Style 1354 (30 V 60C) EU Directive 2011/65/EU (ROHS II): Yes IEEE Specification: IEEE802.3 10Base2 Other Standards: ISO8802.3 10Base2 EU CE Mark: Yes EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes Page 1 of 3 01-05-2017Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION 9907 Coax - Coaxial Cable - Thinnet 10Base2 Ethernet EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order 39 (China RoHS): Yes Customer Part Number Reference Specification: DEC Part No. 17-01248-00 RG Type: 58A/U Flame Test UL Flame Test: UL1685 UL Loading Plenum/Non-Plenum Plenum (Y/N): No Plenum Number: 82907, 89907 Electrical Characteristics (Overall) Nom. Characteristic Impedance: Impedance (Ohm) Tolerance (Ohms) 50 +/- 2 Nom. Capacitance Conductor to Shield: Capacitance (pF/ft) 25.4 Nominal Velocity of Propagation: VP (%) 80 Nominal Delay: Delay (ns/ft) 1.27 Nom. Conductor DC Resistance: DCR 20C (Ohm/1000 ft) 8.8 Maximum Loop Resistance: Resistance (Ohm/1000 ft) 15.24 Nominal Outer Shield DC Resistance: DCR 20C (Ohm/1000 ft) 5.8 Nom. Attenuation: Freq. (MHz) Attenuation (dB/100 ft.) 1 .43 10 1.3 50 2.91 100 4.2 200 6.1 400 8.9 700 12.1 900 13.9 1000 14.8 Max. Operating Voltage - UL: Voltage Description 300 V RMS 30 V RMS UL AWM Style 1354 Notes (Overall) Notes: Tape to bond at overlap area only. Tape is not designed to bond to dielectric core. Put Ups and Colors: Item Putup Ship Weight Color Notes Item Desc 9907 E4XU1000 1,000 FT 24.000 LB GRAY, LIGHT DEC RG-58 TYPE COAX 9907 E4X1000 1,000 FT 25.000 LB GRAY, LIGHT DEC C RG-58 TYPE COAX 9907 E4X1640 1,640 FT 41.000 LB GRAY, LIGHT DEC C RG-58 TYPE COAX 9907 E4X2500 2,500 FT 62.500 LB GRAY, LIGHT DEC C RG-58 TYPE COAX 9907 E4X3280 3,280 FT 82.000 LB GRAY, LIGHT DEC C RG-58 TYPE COAX 9907 E4X500 500 FT 12.500 LB GRAY, LIGHT DEC RG-58 TYPE COAX Page 2 of 3 01-05-2017
