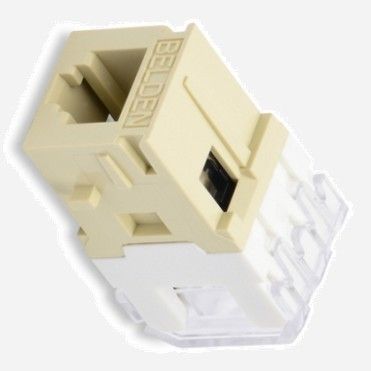

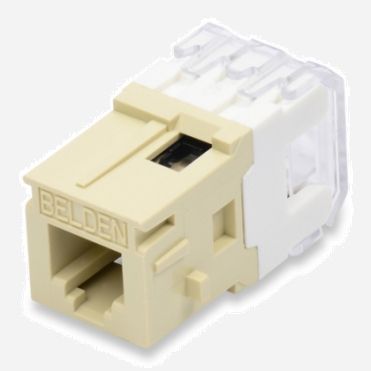

Part Number: FLEX MODULE USOC Flex Modular Jack, RJ45, MDVO Style Product Description Flex Module USOC are available in several colors. Technical Specifications Product Overview Environmental Space: Indoor Suitable Applications: Voice Applications Physical Characteristics (Overall) Height: 0.85 m Width: 0.77 Depth: 1.35 Termination Front Connection: Mated Connection Termination Rear Connection: Gas Tight IDC Connection Wiring Scheme: USOC Packaging: Individually packaged in a plastic bag. Standard pack of 50 units. Weight: 0.014 lbs Connectors Materials Description Material Type Front Connection Copper Allow with 50u inch Gold over Nickel Lead Frame Rear Connection Copper Allow with Nickel Plating IDC Connector Body Plastic - UL940V-0 Electrical Characteristics Dielectric Strength: 1,000 V RMS 60 Hz for 1 minute Current Rating: 1.500 A Insulation Resistance: 500 M-Ohm Minimum Max Contact Resistance: 20 mOhm Termination Resistance: 2.5 mOhm Temperature Range Installation Temp Range: -10C To +60C Storage Temp Range: -40C To +70C Operating Temp Range: -10C To +60C Mechanical Characteristics Footprint/Type: MDVO Tool Compatibility: Belden 110 Connecting Tool, MediaFlex Termination Station Plug /Jack Compatibility: RJ45, RJ11 Termination Front Connection Durability: 1,000 cycles Termination Rear Connection Durability: 20 terminations Connector/Hardware Retention: 20 lbsPlug/Connector Retention: 11.250 lbs Standards Data Category: N/A Other Standards: FCC Part 68, Subpart F, IEC 60603-7 Applicable Environmental and Other Programs EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01 MII Order 39 (China RoHS): EUP 50 Flammability, LS0H, Toxicity Testing Safety Listing: ACA, c(UL)us Listed Part Number Related Parts: Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels Variants Item Color Packaging Wiring Scheme AX101034 Almond Single Pack USOC AX101036 Black Single Pack USOC AX101033 Gray Single Pack USOC AX102565 Ivory Single Pack USOC AX101041 TIA Blue Single Pack USOC AX101043 TIA Brown Single Pack USOC AX101040 TIA Green Single Pack USOC AX101037 TIA Orange Single Pack USOC AX101042 TIA Purple Single Pack USOC AX101038 TIA Red Single Pack USOC AX101039 TIA Yellow Single Pack USOC AX101035 White Single Pack USOC Product Notes Included Parts: 1 Clear Protective Cap 2018 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
