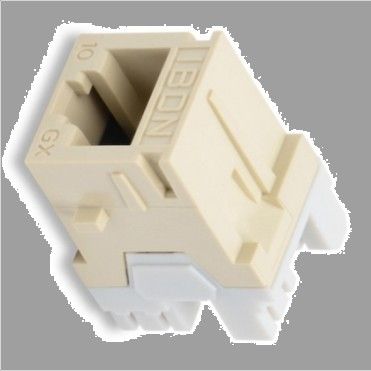

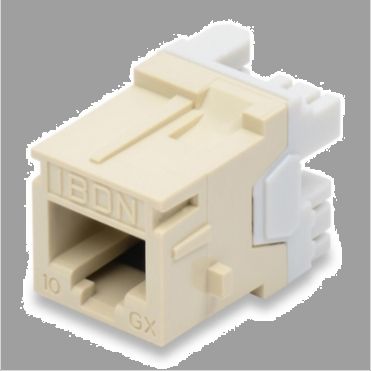

Part Number: 10GX MDVO JACKS 10GX Modular Jack, Category 6A, RJ45, MDVO Style Product Description CAT6A MDVO Jacks are available in several colors. Technical Specifications Product Overview Environmental Space: Indoor Suitable Applications: IBDN System 10GX, TIA Category 6A, ISO Class E, 10GBASE-T Physical Characteristics (Overall) Height: 0.78 m Width: 0.77 Depth: 1.17 Termination Front Connection: Mated Connection Termination Rear Connection: IDC Connection Wiring Scheme: T568A/B Packaging: Individually packaged in a plastic bag. Standard pack of 50 units. Weight: 0.016 lbs Connectors Materials Description Material Type Front Connection Flexible PCB with 50 inch Gold over Nickel Flexible PCB Rear Connection Phosphor Bronze with Tin Plating over Nickel IDC Connector Body Plastic - UL94V-0 Electrical Characteristics Dielectric Strength: 1,000V RMS 60 Hz for 1 minute Current Rating: 1.500 A Insulation Resistance: 500 M-Ohm Minimum Max Contact Resistance: 20 mOhm Termination Resistance: 2.5 mOhm Temperature Range Installation Temp Range: -10C to +60C Storage Temp Range: -40C to +70C Operating Temp Range: -10C to +60C Mechanical Characteristics Footprint/Type: MDVO Tool Compatibility: Belden 110 Connecting Tool Plug /Jack Compatibility: RJ45, RJ11 Termination Front Connection Durability: 750 cycles Termination Rear Connection Durability: 20 terminations Cable/Connector Retention: 15 lbs.Connector/Hardware Retention: 20 lbs Plug/Connector Retention: 11.250 lbs Standards Data Category: Category 6A Telecommunications Standards: Category 6A - TIA 568.C.2, ISO/IEC 11801:2002 Amendment 2 Other Standards: FCC Part 68, Subpart F, IEC 60603-7 Third Party Performance Verification: ETL - Verified Category 6A Applicable Environmental and Other Programs EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01 MII Order 39 (China RoHS): EUP 50 Flammability, LS0H, Toxicity Testing Safety Listing: ACA, c(UL)us Listed Part Number Related Parts: Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels Variants Item Color Packaging Wiring Scheme AX102270 Almond Single Pack T568A/B AX102272 Black Single Pack T568A/B AX102269 Gray Single Pack T568A/B AX102562 Ivory Single Pack T568A/B AX102277 TIA Blue Single Pack T568A/B AX102279 TIA Brown Single Pack T568A/B AX102276 TIA Green Single Pack T568A/B AX102273 TIA Orange Single Pack T568A/B AX102278 TIA Purple Single Pack T568A/B AX102274 TIA Red Single Pack T568A/B AX102275 TIA Yellow Single Pack T568A/B AX102271 White Single Pack T568A/B Product Notes Included Parts: 1 X-Bar + 1 Dust Cap 2018 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
