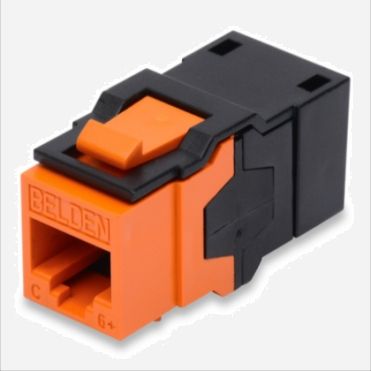

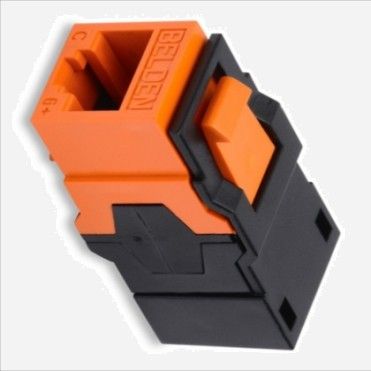

Product: CAT6+ KEYCONNECT COUPLERS CAT6+ RJ45 Coupler, KeyConnect Style Product Description CAT6+ KeyConnect Jacks are available in several colors. Technical Specifications Product Overview Environmental Space: Indoor Suitable Applications: IBDN System CAT6+, TIA Category 6 Physical Characteristics (Overall) Height: 0.895 in Width: 0.692 in Depth: 1.522 in Wiring Scheme: T568A/B-T568A/B Packaging: Individually packaged in a clear plastic bag. Weight: 0.380 lbs Connectors Materials Description Material Type Front Connection Flexible PCB with 50 inch Gold over Nickel Flexible PCB Rear Connection Flexible PCB with 50u inch Gold over Nickel Flexible PCB Connector Body Plastic - UL94V-0 Electrical Characteristics Dielectric Strength: 1,000V RMS 60 Hz for 1 minute Current Rating: 1.500 A Insulation Resistance: 500 M-Ohm Minimum Max Contact Resistance: 20 mOhm Temperature Range Installation Temp Range: -10C to +60C Storage Temp Range: -40C to +70C Operating Temp Range: -10C to +60C Mechanical Characteristics Footprint/Type: KeyConnect Plug /Jack Compatibility: RJ45 Termination Front Connection: Mated Connection Termination Front Connection Durability: 750 cycles Termination Rear Connection: Mated Connection Termination Rear Connection Durability: 750 cycles Connector/Hardware Retention: 20 lbsStandards Data Category: Category 6+ Telecommunications Standards: Category 6 - TIA 568.C.2, ISO/IEC 11801:2002 Ed.2 Other Standards: FCC Part 68, Subpart F, IEC 60603-7 Applicable Environmental and Other Programs EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (yyyy-mm-dd): 2009-08-01 MII Order 39 (China RoHS): EUP 50 Flammability, LS0H, Toxicity Testing Safety Listing: c(UL)us Listed Part Number Related Parts: CAT6+ Coupler Patch Panels Variants Item Color Packaging Wiring Scheme AX104215 Black Single Pack T568A/B-T568A/B AX104210 Blue Single Pack T568A/B-T568A/B AX104214 Electric White Single Pack T568A/B-T568A/B AX104213 Gray Single Pack T568A/B-T568A/B AX104209 Green Single Pack T568A/B-T568A/B AX104206 Orange Single Pack T568A/B-T568A/B AX104211 Purple Single Pack T568A/B-T568A/B AX104207 Red Single Pack T568A/B-T568A/B AX104208 Yellow Single Pack T568A/B-T568A/B History Update and Revision: Revision Number: 0.189 Revision Date: 09-27-2019 2019 Belden, Inc All Rights Reserved. Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described here in are subject to error or omission and to change without notice, and the listing of such information and specifications does not ensure product availability. Belden provides the information and specifications herein on anASI basis, with no representations or warranties, whether express, statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract, negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein. All sales of Belden products are subject to Belden s standard terms and conditions of sale. Belden believes this product to be in compliance with all applicable environmental programs as listed in the data sheet. The information provided is correct to the best of Belden s knowledge, information and belief at the date of its publication. This information is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. The Product Disclosure is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product.
