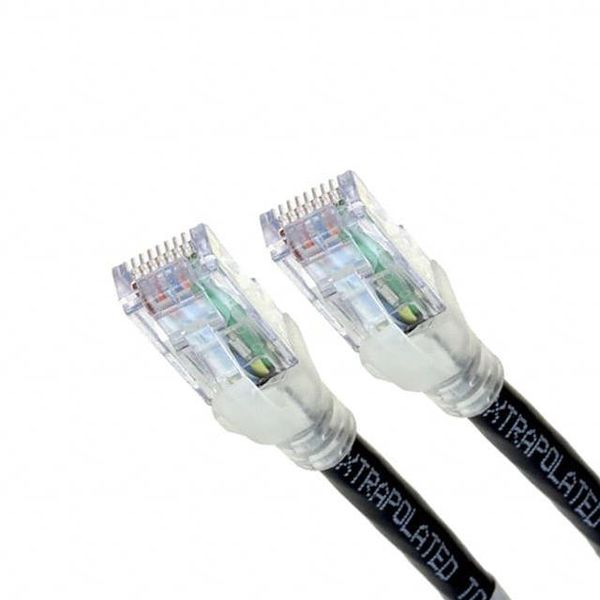

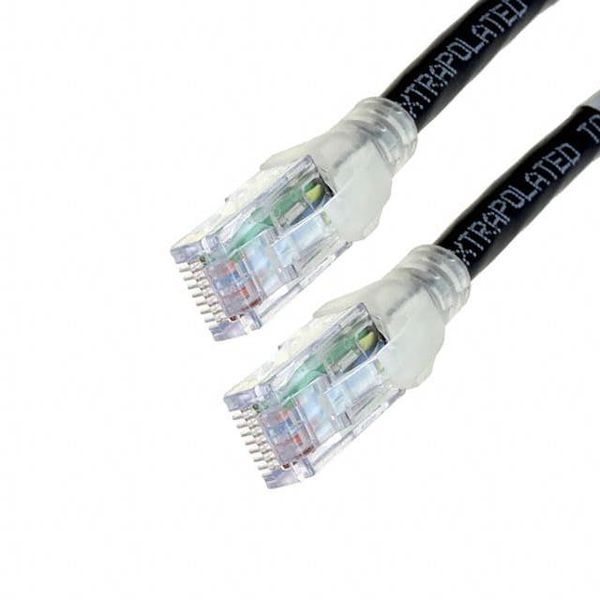

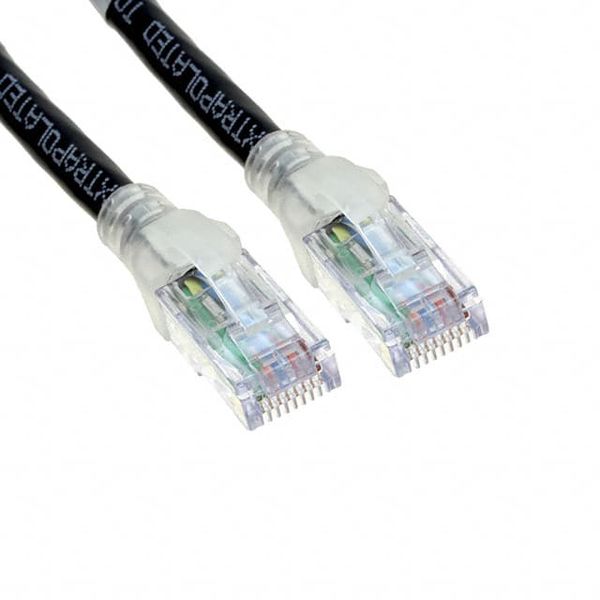

Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION CA21100002 Cable Assemblies - 10GX Modular Cord For more Information please call 1-800-Belden1 General Description: 10GX Patch Cord UTP, Bonded-Pair, 4-Pair, 24 AWG Solid, CMR, T568A/B-T568A/B, Black, 2 ft. (0.6 m). Usage (Overall) Suitable Applications: IBDN System 10GX, TIA Category 6A, ISO Class EA, 10GBASE-T Related Parts: 10GX Modular Jacks, 10GX Patch Panels Multi Conductor Physical Characteristics Conductor AWG: Pairs AWG Stranding Conductor Material 4 24 Solid BC - Bare Copper Insulation Insulation Material: Insulation Material PO - Polyolefin Inner Jacket Inner Jacket Material: Inner Jacket Material PVC - Polyvinyl Chloride Outer Shield Outer Shield Material: Outer Shield Trade Name Type Outer Shield Material Floating Screen Foil AL - Aluminum Outer Jacket Outer Jacket Material: Outer Jacket Material PVC - Polyvinyl Chloride Outer Jacket Color Code Chart: Color Black Overall Cabling Overall Cabling Fillers: Cross Web Overall Diameter Overall Nominal Diameter: 0.265 in. Physical Characteristics (Connectivity) Materials Materials: Description Type Material Plug RJ45 Polycarbonate Boot Elastomer Front Connection Blades Phosphor Bronze with 50u inch Gold over Nickel Plating Color Boot Color: Translucent Wiring Scheme Wiring Scheme: T568A/B-T568A/B Weight Weight: 0.380 lbs. Packaging Packaging: Individually packaged in a clear plastic bag. Page 1 of 3 09-07-2017Detailed Specifications & Technical Data ENGLISH MEASUREMENT VERSION CA21100002 Cable Assemblies - 10GX Modular Cord Packaging: Individually packaged in a clear plastic bag. Mechanical Characteristics (Connectivity) Plug / Jack Compatibility: RJ45 Termination Interface: Termination Connection Durabilities RJ45 Mated Connection 750 Cycles Storage Temperature Range: -40C To +70C Installation Temperature Range: -10C To +60C Operating Temperature Range: -10C To +60C Max. Recommended Pull Tension: 25 lbs. Min. Bend Radius (Overall Cable): 1.040 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs UL Rating: Riser Other Standards: FCC Part 68, Subpart F, IEC 60603-7 EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2006 MII Order 39 (China RoHS): EUP 50 Telecommunications Standards: ISO/IEC 11801:2002 Amendment 2 Safety Listing: Bi-national Standard Listed Suitability Suitability - Indoor: Yes Transmission Characteristics (Connectivity) Performance Table 1: Max. Max. Min. Min Min. Min. Frequency Insertion Loss Insertion Loss PSNEXT PSNEXT PSACRF PSACRF (MHz) TIA* (dB) Belden (dB) TIA* (dB) Belden (dB) TIA* (dB) Belden (dB) 1.000 2.500 2.400 72.300 72.300 64.800 64.800 4.000 4.600 4.500 63.300 63.300 52.800 52.800 8.000 6.400 6.300 58.800 58.800 46.700 46.700 10.000 7.100 7.000 57.300 57.300 44.800 44.800 16.000 9.000 8.900 54.200 54.300 40.700 40.700 20.000 10.100 10.000 52.800 52.800 38.800 38.800 25.000 11.300 11.100 51.300 51.300 36.800 36.800 31.250 12.600 12.500 49.900 49.900 34.900 34.900 62.500 18.000 17.900 45.400 45.400 28.900 28.900 100.000 22.900 22.800 42.300 42.300 24.800 24.800 200.000 33.100 33.000 37.800 37.800 18.800 20.900 250.000 37.300 37.200 36.300 36.300 16.800 16.800 300.000 41.200 41.000 35.100 35.200 15.300 15.300 400.000 48.100 48.000 33.300 33.300 12.800 13.900 500.000 54.400 54.300 31.800 31.800 10.800 11.700 625.000 61.500 30.400 8.800 Performance Table - Footnote: 100 Meter Cable Specifications - * TIA/EIA-568-B.2-10-2008 Category 6A Standard Performance Table 2: Min. Min. Min. Min. Min. Min. Min. Min. Frequency (MHz) Return Loss Return Loss PSANEXT PSANEXT PSAACR-F PSAACR-F Balanced TCL Balanced TCL TIA* (dB) Belden (dB) TIA* (dB) Belden (dB) TIA* (dB) Belden (dB) TIA* (dB) Belden (dB) 1.000 20.000 20.000 67.000 87.000 67.000 75.000 40.000 48.000 4.000 23.000 23.000 67.000 87.000 66.200 75.000 40.000 48.000 8.000 24.500 24.500 67.000 87.000 60.100 75.000 40.000 48.000 10.000 25.000 25.000 67.000 87.000 58.200 75.000 40.000 48.000 16.000 25.000 25.000 67.000 87.000 54.100 70.900 38.000 46.000 20.000 25.000 25.000 67.000 87.000 52.200 69.000 37.000 45.000 25.000 24.200 25.000 67.000 87.000 50.200 67.000 36.000 44.000 31.250 23.300 25.000 67.000 87.000 48.300 65.100 35.100 43.100 62.500 20.700 25.000 65.600 85.600 42.300 59.100 32.000 40.000 100.000 19.000 25.000 62.500 82.500 38.200 55.000 30.000 38.000 200.000 16.400 21.000 58.000 78.000 32.200 49.000 27.000 35.000 Page 2 of 3 09-07-2017
