H125A00.00100 Belden

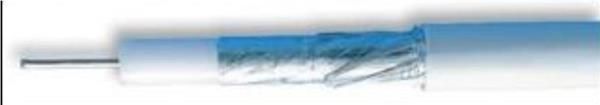

Product Datasheet H125 CU PVC P/N 46477 Rev. 1A Page 1 of 2 Date 22-03-2000 Application Drop coaxial cable used in HFC / CATV broadband communication networks or SATV Key features All copper conductor material Coaxial cable fit for standard connector usage Test methods in accordance with European standard EN 50117-1. Designed according the European Standard EN 50117 operating at frequencies between 5 MHz and 2150 MHz and the International Standard IEC 1196. Construction & Dimensions 1 2 3.1 3.2 4 1 Inner conductor Solid soft annealed copper 2 Dielectric Gas injected PE 3.1 Foil Copper 3.2 Braid Annealed copper 4 Sheath PVC according the European Standard HD 624. 1. Inner conductor diameter: 1.0 mm 0.02 mm 2. Dielectric diameter: 4.8 mm 0.15 mm 3. Outer conductor diameter screen: 5.24 mm 0.2 mm 4. Sheath diameter: 6.8 mm 0.2 mm Mechanical characteristics Adhesion of dielectric: 7.8 78 N at 25 mm 2 Tensile strength of sheath: 12.5 N/mm Elongation of sheath at break: 150 % Crush resistance of cable: < 1% (load of 700N) Storage temperature: -40C to +70C Operating temperature: -40C to +70C Minimum installation temperature: -5 C Maximum tensile strength of cable: 55 N Minimum static bend radius: 70 mm Total weight: 46 g/m Belden Wire & Cable B.V.Product Datasheet H125 CU PVC P/N 46477 Rev. 1A Page 2 of 2 Date 22-03-2000 Electrical characteristics Mean characteristic impedance: 75 3 Regularity of impedance: > 40 dB DC loop resistance: 41 /km DC resistance inner conductor: 23 /km DC resistance outer conductor: 18 /km Capacitance: 55 pF/m 2 pF/m Velocity ratio: 0.81 0.02 4 Insulation resistance: > 10 M .km Voltage test of dielectric: 2 kVdc Screening efficiency 30-1000 MHz: 85 dB Return loss at 5-30 MHz: 23 dB* 30-470 MHz: 23 dB* 470-862 MHz: 20 dB* 862-2400 MHz: 18 dB* *Max. 3 peak values 4 dB lower than specified. Attenuation at Nominal Attenuation at Nominal 5 MHz: 1.3 dB/100m 800 MHz: 18.0 dB/100m 50 MHz: 4.2 dB/100m 1000 MHz: 20.4 dB/100m 100 MHz: 6.0 dB/100m 1350 MHz: 24.1 dB/100m 200 MHz: 8.6 dB/100m 1750 MHz: 27.9 dB/100m 400 MHz: 12.4 dB/100m 2150 MHz: 31.4 dB/100m 600 MHz: 15.4 dB/100m 2400 MHz: 33.5 dB/100m Maximum attenuation is 0.5 dB/100m higher. Ordering information MARKING Standard text Inkjet printing BELDEN VENLO HOLLAND YYYY H125 Metermarking: Yes YYYY: Year of production. PACKAGING Belden code Delivery length Remark 46477 xxxx 172 Carton box 100 m 2% 46477 xxxx 011 Non returnable reel 250 m 2% 46477 xxxx 240 Non returnable reel 500 m 2% xxxx: Color code Other marking or color on request. Belden Wire & Cable B.V.
