X-On Electronics has gained recognition as a prominent supplier of MRG5801.10100 Coaxial Cables across the USA, India, Europe, Australia, and various other global locations. MRG5801.10100 Coaxial Cables are a product manufactured by Belden. We provide cost-effective solutions for Coaxial Cables, ensuring timely deliveries around the world.

MRG5801.10100 Belden

Name: MRG5801.10100
Brand: Belden
SKU: MRG580110100_Belden
Availability: OutOfStock
Rating: 5 (11 reviews)

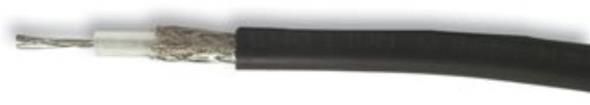

MRG5801.10100 electronic component of Belden

Images are for reference only
See Product Specifications

Part No.	MRG5801.10100
Manufacturer:	Belden
Category:	Coaxial Cables
Description:	CABLE, COAX, RG58, LSF, BLACK, 100M
Datasheet:	MRG5801.10100 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 455.3088 ea
Line Total: USD 455.31

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

MRG5801.10100 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Tue. 26 Nov to Mon. 02 Dec MOQ : 1 Multiples : 1	1 : USD 455.3088

Specifications

Manufacturer Belden Belden
Product Category Coaxial Cables Coaxial Cables
Impedance 50 Ohms 50 Ohms
Conductor Material copper copper
Jacket Material - -
Coaxial Cable Type rg58c rg58c
Wire Gauge - -
Conductor Area Csa - -
Reel Length Imperial 328 ft 328 ft
Reel Length Metric 100 m 100 m
No Of Max Strands X Strand Size 19 x 0.18 mm 19 x 0.18 mm
Jacket Colour black black
External Diameter 4.95 mm 4.95 mm
Svhc no svhc (15 - jun - 2015) no svhc (15 - jun - 2015)
Attenuation 10Mhz 4.5db 4.5db
Attenuation 1Ghz 50.0db 50.0db
Attenuation 200Mhz 22.0db 22.0db
Attenuation 400Mhz 32.0db 32.0db
Capacitance 100 pF /m 100 pF /m
Conductor Make-Up 19 / 0.18mm 19 / 0.18mm
Operating Temperature Max 70 C 70 C
Operating Temperature Min - 15 C - 15 C
Outer Diameter 4.95 mm 4.95 mm
Resistance Per Metre 36 Ohms /km 36 Ohms /km
Standard lsnh lsnh
Velocity Of Propagation 66 % 66 %
Voltage Rating V Ac 2000 V 2000 V

We are delighted to provide the MRG5801.10100 from our Coaxial Cables category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the MRG5801.10100 and other electronic components in the Coaxial Cables category and beyond.

More Products By Manufacturer "Belden"

Image	Part-Description
Hot	1035A 0101000 Multi-Conductor Cables 16AWG 1PR UNSHLD 1000ft SPOOL BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1035A-BLK-1000 Power Limited Tray Cable - 1 Pair - 16 AWG - 7x24 Strands - 300V - 1000ft - Black. Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A-BLK-1000 TRAY CABLE, 1 TRIAD, 18AWG STRAND (7X26), PVC INSULATION, INSTRUMENTATION BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A 0101000 Multi-Conductor Cables 20AWG 1PR SHIELD 1000ft SPOOL BLACK Stock : 210 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1033A-BLK-1000 Tray Cable 2Conductors 20AWG 5.4mm 300VAC Black 304.8m Reel Stock : 2 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1036A 0101000 Multi-Conductor Cables 18AWG 1TR SHIELD 1000FT SPOOL BLACK Stock : 7 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX13 D151000 Multi-Conductor Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GX44 0061000 Multi-Conductor Cables CAT6A 4PRB U/UTP LSZH Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1034A 0101000 Multi-Conductor Cables 3 #16 PVC PVC Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	10GXS32 0091000 Multi-Conductor Cables CAT6A 4PRB U/UTP CMR Reel Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

More Products By Category "Coaxial Cables"

Image	Part-Description
Hot	8216 010100 Coaxial Cables 26AWG 1C SHIELD 100ft SPOOL BLACK Stock : 65 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1186A-010-1000 Coaxial Cables 20AWG 1C SHIELD 1000ft SPOOL BLACK Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	FC75-01-CA003 COAX CABLE 75 OHM 3' 1C Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	1026-36 CABLE TEST BNC MALE-BNC MALE 36" Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	7805 010100 Coaxial Cables 25AWG 1C SHIELD 100ft SPOOL BLACK Stock : 12 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	80346275 Coaxial Cables Cable in Meters Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	7518A0811-0 Triaxial Cable Tape/Braid Rayfoam 18AWG 12.06mm Black Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	582197-000 CHEMINAX 75 OHM AWG 18 19 STRANDS OF AWG 30 OPTIM. Stock : 1 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	74020 Wire: coaxial; solid; CCS; PVC; white; 305m; 7mm Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.
Hot	CA-NTYPE-MF-1 Coaxial Cables Outdoor Coax Cable, N Type Male & Female connectors, 5 ft (1 Pk) Stock : 0 Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges.

Additional Infomation About Product

TECHNICAL DATA SHEET code MRG5801 version 1 Coax cable date 2006-03-29 page RG58 C/U LSF 1/2 APPLICATION Coaxial communication cable based on MIL-C-17. CONSTRUCTION 1 2 3 4 1 Inner conductor Stranded tinned copper 2 Dielectric Solid PE 3 Braid Annealed tinned copper 4 Sheath LSNH according the European Standard HD 624. REQUIREMENTS AND TEST METHODS Test methods in accordance with European standard EN 50289. Mechanical characteristics 1. Inner conductor. Diameter: 19 x 0.18 mm 0.02 mm 2. Dielectric: Diameter: 2.95 mm 0.15 mm 3. Outer conductor: Diameter screen: 3.5 mm 0.2 mm Coverage braid: 93 % 4 % 4. Sheath: Diameter: 4.95 mm 0.2 mm 2 Tensile strength: 9.0 N/mm Elongation at break: 125 % 5. Cable: Crush resistance of cable: < 1% (load of 700N) Temperature range -storage/operating: -15C to +70C Temperature range -installation: -5 C to + 50C Minimum static bend radius: 25 mm Total weight: 38 kg/km Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner TECHNICAL DATA SHEET code MRG5801 version 1 Coax cable date 2006-03-29 page RG58 C/U LSF 2/2 Electrical characteristics Mean characteristic impedance: 50 2 Regularity of impedance: > 40 dB DC resistance inner conductor: 36 /km Capacitance: 100 pF/m 2 pF/m Nominal velocity of propagation: 66 % 4 Insulation resistance: > 10 M.km Voltage Rating DC: 4 kVdc RMS 2kVrms Return loss at 5-30 MHz: 20 dB* 30-470 MHz: 20 dB* 470-1000 MHz: 18 dB* *Max. 3 peak values 4 dB lower than specified. Nominal Attenuation: 10 MHz: 4.5 dB/100m 200 MHz: 22.0 dB/100m 400 MHz: 32.0 dB/100m 1000 MHz: 50.0 dB/100m 2400 MHz: 79.0 dB/100m 3000 MHz: 88.0 dB/100m Belden CDT believes this product to be in compliance with the environmental regulations EU RoHS (Directive 2002/95/EC, 27 January 2003) this is valid for all material produced after the RoHS compliant date for this product. Belden Wire & Cable B.V. All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner
