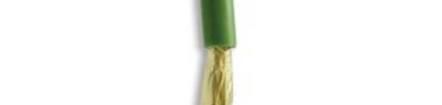

Technical Datasheet YE00820 EIB Y(St)Y 2x2x0.8 Rev. 1/ 2005-10-18 2/2 Application Twisted pair cable used in Konnex building management networks designed according the European Standard EN 50090 Construction and Dimensions 1. Conductor 2. Insulation 3. Separator 4. Drainwire 5. Shielding 6. Jacket 1. Conductor Material Solid bare copper Dimensions 0.8 mm (AWG20) 2. Insulation Material PVC Diameter 1.43 +/- 0.05 mm Minimum wall thickness 0.25 mm Colors in twisted pair Red / Black, White /Yellow Stranding elements quad 3. Separator Material Plastic foil 4. Drainwire Material Solid copper Dimension 0.4 mm (AWG26) 5. Shielding Material Aluminum-polyester Position aluminum Inside Coverage 100% 6. Jacket Material PVC Nominal diameter 6.1 mm Max. diameter 7.0 mm Nominal thickness 1.1 mm Min. wall thickness 0.75 mm Color Green ( RAL 6018) Belden CDT Europe. Tel. +31-(0)77-3878-555 - Fax. +31-(0)77-3878-488 - E-mail: techsupport belden-europe.com All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. All printing errors are subject to correction. Technical specifications are subject to change without notice. Technical Datasheet YE00820 EIB Y(St)Y 2x2x0.8 Rev. 1/ 2005-10-18 2/2 Requirements and test methods Electrical: Max. capacitance conductor to conductor 800kHz 100 nF/km Max.capacitance unbalance 800kHz 300 pF/100m Max.conductor DC loop resistance 20C 73.2 Ohm/km Maximum operating voltage 300 V rms Mechanical and physical: Maximum pulling tension 50 N Minimum bending radius 60 mm Copper weight 19.2 kg/km Total weight 52 kg/km Temperature rating (Installation) -10 to + 50 C (Storage and usage) - 25 to + 70 C Flame resistance IEC 60332-1 Applicable specification EN 50090 Environmental RoHS compliant Ordering information MARKING Sheath RAL Text color BELDENcable (TM) YE00820 EIB 2x2x0.8 mm YYYYY MMMM REG nr 109/7253/05 Green 6018 Metermarking: Yes PACKAGING Put-up Put-up length Put-up type code 0100 100 0/+0 meter Plastic wrapped coil 0500 500 0/+0 meter Non-returnable reel 1000 1000 0/+50 meter Non-returnable reel Each reel is labeled with the following data: Belden CDT Logo. Belden CDT code number. Item description. Length on the reel. Date of manufacture. CE-marking. Belden CDT Europe. Tel. +31-(0)77-3878-555 - Fax. +31-(0)77-3878-488 - E-mail: techsupport belden-europe.com All rights are reserved. Reproduction in whole or in part is prohibited without the written consent of the copyright owner. All printing errors are subject to correction. Technical specifications are subject to change without notice.
