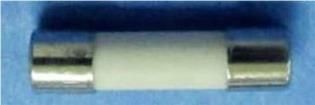

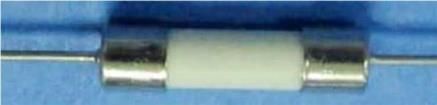

Type 0659C / 0659P Time-lag Fuse Series (High -Breaking Capacity) 0659C/0659P Series, 5x20mm Ceramic Tube Time-Lag Fuse RoHS 2 Compliant Description 5x20mm Time-Lag surge withstand, high breaking capacity, ceramic body cartridge fuse designed, approved and complied with IEC 60127-2,standard sheet 5. Features - High breaking capacity (250V ac 1500A) - Meet IEC standard 60127-2, sheet 5 - Wide operating temperature range - Bulk and Tape & Reel packing available - RoHS 2 compliant - Halogen Free - Lead Free Applications Provide individual protection for components or internal circuits. - Power supplies - Battery charger - Monitor LEAD FREE = - Adapter HALOGEN FREE = Physical Specifications Body : Ceramic Materials Cap : Nickel Plated Brass Caps Leads : Matte Tin Plated Copper On Fuse : bel, T, Current Rating, H,250V, Appropriate Safety Logos Marking On Label :be0659Cor0659Current RatinVoltage RatinInterrupting Ratin,Appropriate Safety Logo and,(China RoHS compliant). Electrical Characteristics (IEC-127-2 STANDARD SHEET 5) Safety Agency Approvals 1.5 In 2.1 In 2.75 In 4 In 10 In Safety Safety Agency Voltage Rating Ampere Range / Volt Rated Current Agency Certificate (V) I.R. ability* MIN MAX MIN MAX MIN MAX MIN MAX 40039275 1A-6.3A/250V AC 1,500A 1A to 3.15A 1 30 0.75 80 95 5 10 150 PSE14020742 0659C: 0659C 1A-5A/250V AC 1,500A 4A and above 1 30 0.75 80 150 5 10 150 PSE14020744 0659C 6.3A/250V AC 1,500A 1A-6.3A/250V hr. min. sec sec ms sec ms ms PSE14020747 0659P 1A-5A/250V AC 1,500A AC PSE14020743 0659P 6.3A/250V AC 1,500A In clause 9.2, the test voltage is 125VDC. 2014010207673750 0659C 1A-6.3A/250V AC 1,500A 0659P: CQC14012105368 0659P 1A-6.3A/250V AC 1,500A 1A-6.3A/250V AC 1A-6.3A/250V AC 1,500A E20624 1A-6.3A/600V AC 150A *I.R.= Interrupting Rating = Short Circuit Rating(Amps) Specifications subject to change without notice belfuse.com/circuit-protection2 / 4 Type 0659C / 0659P Environmental Specifications MIL-STD-202G, Method 213B, Test Condition 1 Shock Resistance (100 G s peak for 6 milliseconds Sawtooth waveform) Vibration Resistance MIL-STD-202G, Method 201A (10-55 Hz, 0.06 inch, total excursion). Salt Spray Resistance MIL-STD-202G, Method 101E, Test Condition B (48 hrs.). MIL-STD-202G, Method 302, Test Condition B Insulation Resistance (After Opening) 100,000 ohms minimum. Solderability MIL-STD-202G, Method 208H Resistance to solder Heat MIL-STD-202G, Method 210F, Test Condition B (260+/-5,10+/-1 sec) Thermal Shock MIL-STD-202G, Method 107G, Test Condition B (-65 to +125). Operating Temperature -55 to +125 Terminal Strength IEC-68-2-21 Electrical Specifications Maximum Agency Approvals Voltage and Typical Cold Volt-drop Melting IT Melting IT Ampere Part Power Interrupting Resistance 100%In <10 mSec 10 In Rating Number Dissipation (ohms) (Volt) max. Ratings (A Sec) (A Sec) (W) 0659C1000-XX Y 1A 0.134 0.191 2.3 2.4 0.45 Y Y Y 0659P1000-XX Y 0659C1250-XX Y 1.25A 0.103 0.187 3.2 3.3 0.56 Y Y Y 0659P1250-XX Y 0659C1600-XX Y 1.6A 0.076 0.178 5.6 5.4 0.60 Y Y Y 0659P1600-XX Y 0659C2000-XX Y 2A 0.049 0.141 14.4 14.0 0.70 Y Y Y 0659P2000-XX See Table of Y Safety Approvals 0659C2500-XX on Page 1 for Y 2.5A 0.036 0.133 Voltage and 28.1 25.0 0.87 Y Y Y 0659P2500-XX associated Y Interrupting 0659C3150-XX Ratings Y 3.15A 0.024 0.110 25.0 24.8 0.86 Y Y Y 0659P3150-XX Y 0659C4000-XX Y 4A 0.016 0.095 56.3 51.2 0.89 Y Y Y 0659P4000-XX Y 0659C5000-XX Y 5A 0.013 0.090 88.2 92.5 1.14 Y Y Y 0659P5000-XX Y 0659C6300-XX Y 6.3A 0.009 0.086 139.2 142.9 1.39 Y Y Y 0659P6300-XX Y Consult manufacturer for other ratings Specifications subject to change without notice Bel Fuse Inc. +1 201.432.0463 206 Van Vorst Street Bel.US.CS belf.com Jersey City, NJ 07302 USA belfuse.com/circuit-protection 2019 Bel Fuse, Inc. Rev.0659C/0659P Jan2019
