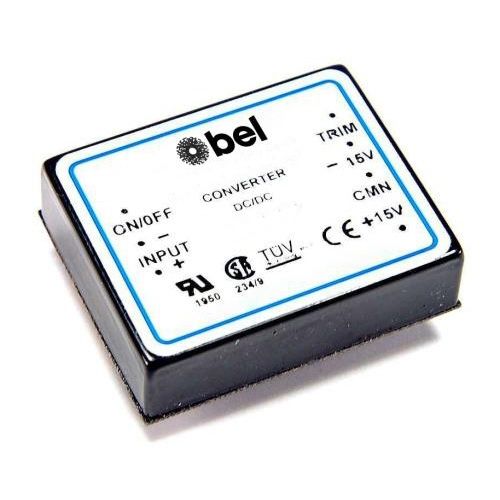

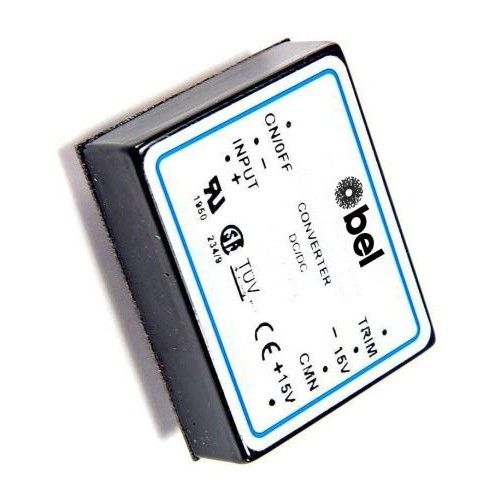

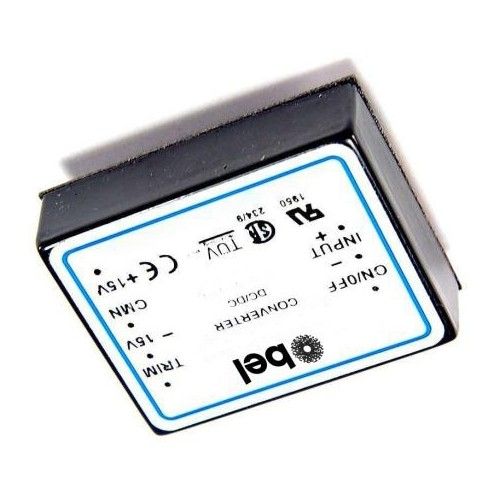

DFC15 Dual-Output DC-DC Series Data Sheet Features Description RoHS lead solder exemption compliant The dual-output DFC15 Series of dc-dc converters are Remote on/off and trim designed to provide a wide range of PCB power Overcurrent and overtemperature protected solutions where positive and negative outputs are Water-washable case required. The converter features fully isolated and Efficiencies to 82% filtered input and outputs for low noise. Trim and 1544 V isolation remote On/Off features give flexibility to designs. The Ultra-wide range input (>3:1) ultra-wide input range, from 20 to 72 volts, allows use in most industrial and communication applications. BOTTOM VIEW SIDE VIEW Model Selection 2.02 0.040 (1.02) DIA (51.31) 7 PLACES Input Range Output Output VDC Model 4 1.100 VDC mA (27.94) Min Max 0.700 20 72 12 625 5 DFC15U48D12 (17.78) 0.600 1 20 72 15 500 DFC15U48D15 (15.24) 1.62 0.400 (41.15) 2 6 (10.16) Model numbers highlighted in yellow or shaded are not recommended for 0.300 (7.62) new designs. 3 0.000 7 0.100 (2.54) 0.31 (7.9) General Specifications (1) All Models Units ON/OFF Function (2) ON Logic Level MIN 8.0 VDC or Leave Pin Floating Mechanical tolerances unless otherwise noted: Off Logic Level MAX 2.0 VDC X.XX dimensions: 0.010 inches Input Resistance TYP 100 Kohms X.XXX dimensions: 0.005 inches Converter Idle Current TYP 2 mA ON/OFF Pin Low Isolation (3) Pin Function Breakdown Voltage 1 +INPUT 10 A Leakage MIN 1544 VDC 2 -INPUT Input to Output 3 ON/OFF Input to Output TYP 450 pF Capacitance 4 +OUTPUT Output Trim Function 5 COMMON 6 -OUTPUT Input Resistance TYP 40 Kohms 7 TRIM Programming Range MIN +5, -34 % Environmental Case Functional Range, Tc -40 MIN Notes C MAX No Derating 100 (1) All parameters measured at Tc = 25 C, nominal input voltage and full rated load unless otherwise noted. -55 MIN Storage Range C (2) The logic ON/OFF pin is Open Collector TTL, CMOS, and relay MAX 105 compatible. The input to this pin is referenced to Pin 2, -Input and Thermal Impedance (4) TYP 10 C/Watt is protected to +100 VDC. Thermal Shutdown (3) Case is tied to Pin 1, + Input. TYP 105 C Case Temperature (4) The case thermal impedance is specified as the case temperature rise over ambient per package watt dissipated. General MTBF (Calculated) TYP 800,000 HRS Unit Weight TYP 2.3/65 oz/gm Chassis Mounting Kit CM2B2 REV. JAN 20, 2006 Page 1 of 4 www.power-one.com 0.11 (2.8) 0.000 1.800 (45.72) 0.3 (7.62) 0.000 0.55 (13.97)DFC15 Dual-Output DC-DC Series Data Sheet Input Parameters (1) Model DFC15U48D12 DFC15U48D15 Units MIN 20.0 Voltage Range TYP 48.0 VDC MAX 72.0 Reflected Ripple (2) (3) TYP 660 mA PP Input Current Full Load TYP 384 381 mA No Load TYP 5 5 Efficiency TYP 81 82 % Switching Frequency TYP 120 kHz Maximum Input Overvoltage 100ms MAX 85 VDC Turn-on Time, 1% Output Error TYP 20 ms Output Parameters (1) Model DFC15U48D12 DFC15U48D15 Units Output Voltage 12 15 VDC MIN 0 0 Rated Load Range mA MAX 625 500 MIN 11.900 14.900 Voltage Range TYP 12.000 15.000 VDC MAX 12.100 15.100 Load Regulation (4) TYP 0.15 % 0% -100% Full Load MAX 0.4 Cross Regulation (5) TYP 3.0 % 25%-100% Load Line Regulation TYP 0.04 % Vin = Min-Max VDC MAX 0.2 Short Term Stability (6) TYP < 0.02 %/24Hrs Long Term Stability TYP < 0.2 %/kHrs Input Ripple Rejection (7) TYP >60 dB Noise, 0-20MHz bw (2) with 0.1F External Capacitor TYP 30 mV PP with no External Capacitor TYP 70 mV PP TYP 50 Temperature Coefficient ppm/C MAX 150 Overvoltage Clamp TYP 18 VDC Short Circuit Protection to Continuous protection with current limiting and thermal Common for all Outputs overload techniques Notes (1) All Parameters measured at Tc=25 C, nominal input voltage and full rated load unless otherwise noted. (2) Noise measurement bandwidth is 0-20 MHz. (3) An input capacitor must be used for proper operation of the converter. See the DFC15 Series Application Notes on sizing the input capacitor. (4) Load regulation for the outputs is specified as the voltage change when both outputs are changed from maximum to minimum at the same time. (5) Cross regulation is defined as the change in one output when the other output is changed from full load to 25% of full load. The converter can be run at no load on either or both outputs with no damage. (6) Short term stability is specified after a 60-minute warmup at full load, constant line and recording the drift over a 24-hour period. (7) The input ripple rejection is specified for DC to 120 Hz ripple with a modulation amplitude of 1% of Vin. REV. JAN 20, 2006 Page 2 of 4 www.power-one.com
