X-On Electronics has gained recognition as a prominent supplier of BSMD0805-005-60V Resettable Fuses - PPTC across the USA, India, Europe, Australia, and various other global locations. BSMD0805-005-60V Resettable Fuses - PPTC are a product manufactured by BHFUSE. We provide cost-effective solutions for Resettable Fuses - PPTC, ensuring timely deliveries around the world.

BSMD0805-005-60V BHFUSE

Name: BSMD0805-005-60V
Brand: BHFUSE
SKU: BSMD080500560V_BHFUSE
Availability: InStock
Rating: 5 (11 reviews)

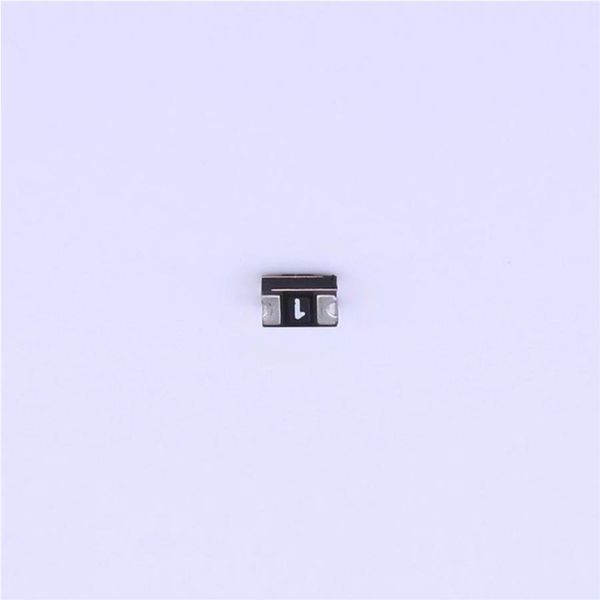

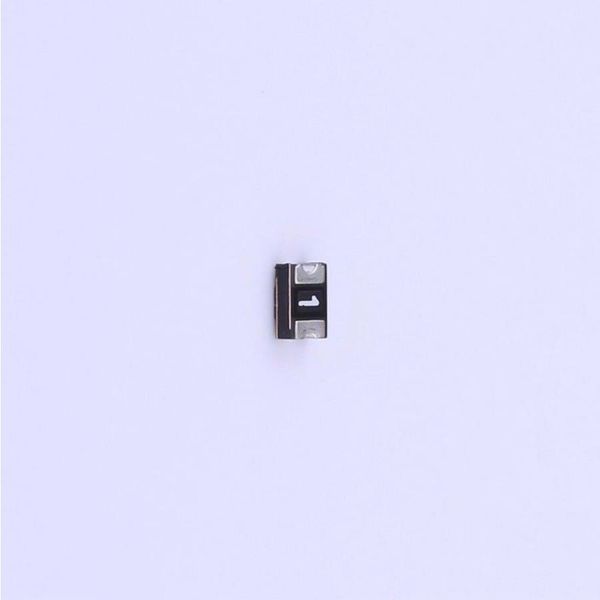

BSMD0805-005-60V electronic component of BHFUSE

BSMD0805-005-60V Resettable Fuses - PPTC

Images are for reference only
See Product Specifications

Part No.	BSMD0805-005-60V
Manufacturer:	BHFUSE
Category:	Resettable Fuses - PPTC
Description:	60V 50mA 40A 500mW -40℃~+85℃ 150mA 1.5Ω 1.5s 20Ω 0805 Resettable Fuses ROHS
Datasheet:	BSMD0805-005-60V Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

10: USD 0.0787 ea
Line Total: USD 0.79

Availability - 5377
Ship by Fri. 17 Jan to Wed. 22 Jan

MOQ: 10 Multiples: 10
Pack Size: 10

BSMD0805-005-60V More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

5377

Ship by Fri. 17 Jan to Wed. 22 Jan

MOQ : 10
Multiples : 10

10 : USD 0.0787
100 : USD 0.0623
300 : USD 0.0543
1000 : USD 0.0482
5000 : USD 0.0433
10000 : USD 0.0409

Specifications

Manufacturer

BHFUSE BHFUSE

Product Category

Resettable Fuses - PPTC Resettable Fuses - PPTC

Hold Current

50 mA 50 mA

Trip Current

150 mA 150 mA

Category

Resettable Fuses-PPTC Resettable Fuses-PPTC

Rohs

y y

Operating Voltage Max

60 V 60 V

Current Rating Max

40 A 40 A

Power Dissipation

500 mW 500 mW

Operating Temperature

- 40 C ~ + 85 C - 40 C ~ + 85 C

Resistance - Initial Ri Min

1.5 Ohms 1.5 Ohms

Maximum Time To Trip

1.5s 1.5s

Resistance - Post Trip R1 Max

20 Ohms 20 Ohms

Notes:- Show Stocked Products With Similar Attributes.
