X-On Electronics has gained recognition as a prominent supplier of TSC015A09526A Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TSC015A09526A Tactile Switches are a product manufactured by Bozhong Electric. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TSC015A09526A Bozhong Electric

Name: TSC015A09526A
Brand: Bozhong Electric
SKU: TSC015A09526A_Bozhong Electric
Availability: InStock
Rating: 5 (11 reviews)

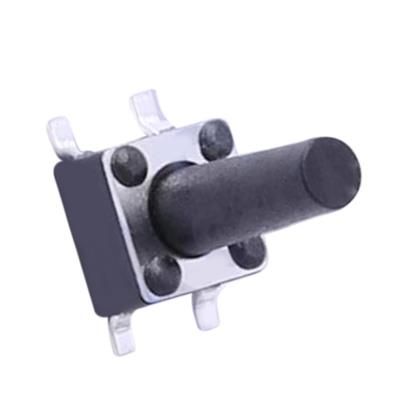

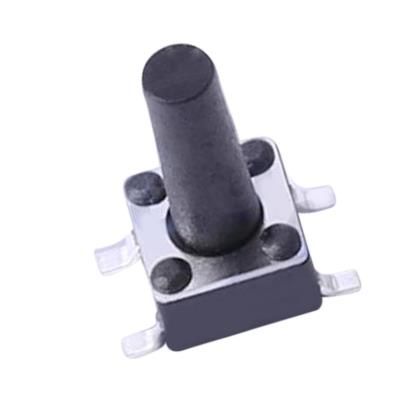

TSC015A09526A electronic component of Bozhong Electric

Images are for reference only
See Product Specifications

Part No.	TSC015A09526A
Manufacturer:	Bozhong Electric
Category:	Tactile Switches
Description:	50mA Brick nogging 12V SMD Tactile Switches ROHS
Datasheet:	TSC015A09526A Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

50: USD 0.0212 ea
Line Total: USD 1.06

Availability - 1231
Ship by Fri. 10 Jan to Wed. 15 Jan

MOQ: 50 Multiples: 50
Pack Size: 50

TSC015A09526A More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1231

Ship by Fri. 10 Jan to Wed. 15 Jan

MOQ : 50
Multiples : 50

50 : USD 0.0212
500 : USD 0.017
3000 : USD 0.0146
6000 : USD 0.0132
24000 : USD 0.012
51000 : USD 0.0112

Specifications

Manufacturer

Bozhong Electric Bozhong Electric

Product Category

Tactile Switches Tactile Switches

Voltage Rating DC

12 V 12 V

Voltage Rating AC

- -

Mounting Style

Brick nogging Brick nogging

Package

SMD SMD

Rohs

y y

Switch Width

4.5 mm 4.5 mm

Switch Height

9.5 mm 9.5 mm

Contact Current

50 mA 50 mA

Actuator Style

Round Button Round Button

Switch Length

4.5 mm 4.5 mm

Mechanical Life

- -

Notes:- Show Stocked Products With Similar Attributes.
