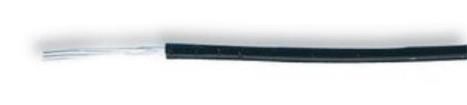

SPC00448A002 100M Brand Rex

Industrial PRODUCT DESCRIPTION PTFE insulated conductors are widely used for internal and external connectors for electronic equipment and instrumentation or environments that demand high PTFE INSULATED EQUIPMENT WIRE TO BS 3G 210 levels of thermal, chemical, UNSCREENED TYPE A, NA, B, NB, C and NC electrical or mechanical protection. PTFE is highly resistant to oils, BS 3G 210 TYPE A AND NA lubricants, fuels and is non AWG Conductor Nom Resistance Cable flammable whilst being very formation Conductor 20C /km Diameter mm flexible. Diameter mm A NA Min Max If required for termination, PTFE 30 1/0.250 0.250 377.0 387.0 0.45 0.60 cables can be surface treated or 28 1/0.320 0.320 229.0 234.0 0.52 0.67 etched. 26 1/0.400 0.400 146.0 148.0 0.60 0.75 32 7/0.080 0.240 558.0 605.0 0.44 0.59 30 7/0.100 0.300 353.0 377.0 0.50 0.65 28 7/0.120 0.360 244.0 258.0 0.56 0.71 26 7/0.150 0.450 159.0 166.0 0.65 0.80 PRODUCT CHARACTERISTICS 24 7/0.200 0.600 88.3 91.2 0.80 0.95 26 19/0.100 0.500 130.0 139.0 0.70 0.85 Conductor : Silver (Type A, B or 24 19/0.120 0.600 89.8 94.9 0.80 0.95 C) or Nickel (Type NA, NB or NC) plated 22 19/0.150 0.750 58.6 61.3 0.95 1.10 annealed copper wire 20 19/0.200 1.000 32.5 33.6 1.20 1.35 Insulation PTFE Temperature rating : Type A 190C Type NA 260C Available in a wide range of ROHS compliant solid and bi-colours Voltage rating 300Vrms IND07-v4 Industrial PRODUCT CHARACTERISTICS BS 3G 210 TYPE B AND NB AWG Conductor Nom Resistance Cable formation Conductor 20C /km Diameter mm Diameter mm B NB Min Max 26 1/0.400 0.400 146.0 148.0 0.80 1.00 23 1/0.600 0.600 64.3 65.0 1.00 1.20 32 7/0.080 0.240 558.0 605.0 0.65 0.84 30 7/0.100 0.300 353.0 377.0 0.70 0.90 28 7/0.120 0.360 244.0 258.0 0.76 0.96 26 7/0.150 0.450 159.0 166.0 0.85 1.05 Temperature rating : 24 7/0.200 0.600 88.3 91.2 1.00 1.20 Type B 190C 26 19/0.100 0.500 130.0 139.0 0.90 1.10 Type NB 260C 24 19/0.120 0.600 89.8 94.9 1.00 1.20 22 19/0.150 0.750 58.6 61.3 1.15 1.35 Voltage rating 600Vrms 20 19/0.200 1.000 32.5 33.6 1.40 1.60 18 19/0.250 1.250 20.6 21.2 1.65 1.85 BS 3G 210 TYPE C AND NC AWG Conductor Nom Resistance Cable formation Conductor 20C /km Diameter mm Diameter mm C NC Min Max 19 1/0.900 0.900 28.5 28.6 1.56 1.82 32 7/0.080 0.240 558.0 605.0 0.90 1.16 30 7/0.100 0.300 353.0 377.0 0.96 1.22 28 7/0.120 0.360 244.0 258.0 1.02 1.28 26 7/0.150 0.450 159.0 166.0 1.11 1.37 24 7/0.200 0.600 88.3 91.2 1.26 1.52 26 19/0.100 0.500 130.0 139.0 1.16 1.42 Temperature rating : 24 19/0.120 0.600 89.8 94.9 1.26 1.52 Type C 190C 22 19/0.150 0.750 58.6 61.3 1.41 1.67 Type NC 260C 20 19/0.200 1.000 32.5 33.6 1.66 1.92 18 19/0.250 1.250 20.6 21.2 1.91 2.17 Voltage rating 1000Vrms 16 19/0.300 1.500 14.3 14.6 2.16 2.46 14 19/0.335 1.675 11.4 11.6 2.34 2.74 12 19/0.450 2.250 6.28 6.38 2.91 3.31 10 37/0.400 2.800 4.01 4.08 3.46 3.86 IND07-v4
