b A ttery R03 A A A 1 , 5 V x2 |
EN 61010, CAT III 1000V, CAT IV 600V |
| |
test leads, K - type temperature probe, users manual |
automatic power - off, HOLD function, REL function, indicates incorrect connection of test leads, contactless voltage detector, CREST: logging of extreme values MAX, MAX HOLD function, double - sided EMI shielding, single - pole contact EF - detection for precise indications of live conductors |

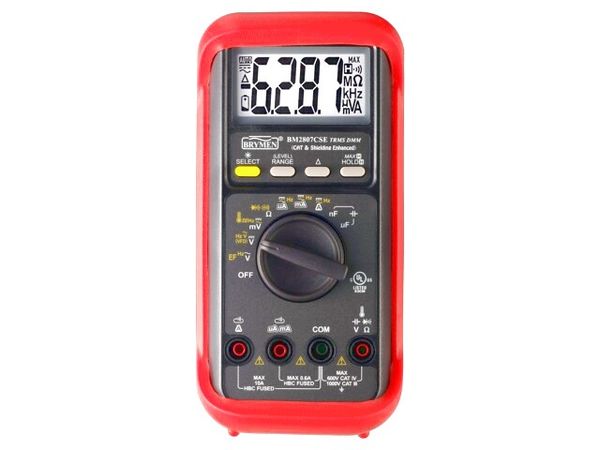

digital multimeter |
acoustic indication, optical indication, 30Ω...480Ω |
| |
| |
- 40 To 400 C |
| |
AC voltage, DC voltage, temperature, frequency, capacitance, DC current, resistance, AC current, continuity |
| |
10 A , 600 uA , 6 A , 60 mA , 600 mA , 6 mA |
600 Ohms , 6 kOhms hms , 60 kOhms hms , 600 kOhms hms , 6 MOhms , 60 MOhms |
600 uA , 10 A , 60 mA , 600 mA , 6 A , 6 mA |
600 V , 1 kV , 6 V , 60 V , 600 mV , 60 mV |
600 V , 1 kV , 6 V , 60 V , 600 mV , 60 mV |
10 To 1000 Hz |
200 uF , 2 MF , 20 uF , 2 uF , 200 nF , 20 nF |
| |
battery LR03 AAA 1 , 5V x2 |
(6000), 3 5/6 digits |
(0.03 % + 4 digit) |
± (1.5 % + 3 digit) |
(1 % + 5 digit) |
(0.2 % + 2 digit) |
(0.7 % + 3 digit) |
(0.7 % + 3 digit) |
± (0.3 % + 3 digit) |
± (1 % + 1 C) |
