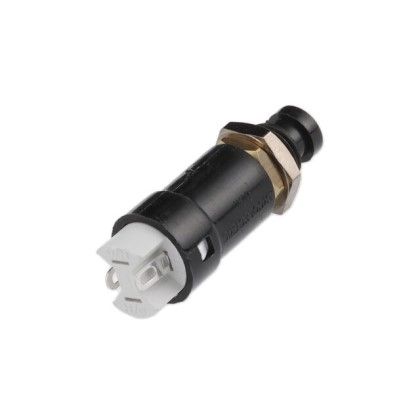

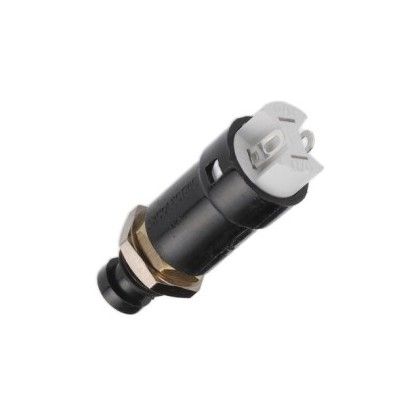

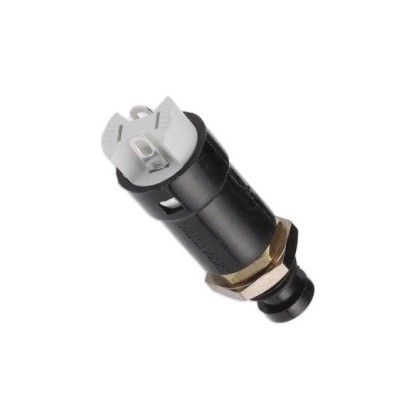

Push Button Switches
Bulgins broad line of pushbutton switches are available in
various sizes and configurations. This includes a variety
of illumination and terminal options as well as several
with high inductive power ratings suitable for motor
driven applications. These switches can be found in
many markets including home appliances, commercial,
medical, audio and security.
Miniature, round and rectangular push
button switches available
Ratings up to 16A, 250V ac
12(12)A 250V ac rating also available
Latching and momentary actions
Choice of actuators
(custom option also available)
Square and Round Mounting Styles
210 SwitchesSwitches
Push Button
Front Panel Mounting
22mm diameter
Prominent Button
S.P. Push to Make
Screw Terminals
Brass, Chrome Plated Body,
Glass Filled Nylon Button
MP0012/Col
Front Panel Mounting
22mm diameter
Recessed Button
S.P. Push to Make
Screw Terminals
Brass, Chrome Plated Body,
Glass Filled Nylon Button
MP0012/1/Col
Rear Panel Mounting
S.P. Push to Make
Solder Tags
1A, 28Vac/dc
Brass Nickel Plated Body,
Glass Filled Nylon Button
MP0016
Specifications MP0012/Colour MP0012/1/Colour MP0016/Colour
Terminations: Screw Terminals Screw Terminals Solder Tags
Switching: S.P. Push to Make S.P. Push to Make S.P. Push to Make
Slow Momentary Action Slow Momentary Action Slow Momentary Action
Max. Rating: 0.25A. 250Vac, 1A. 110Vac, 0.25A. 250Vac, 1A. 110Vac, 1A 28Vac/dc (non-inductive)
2A. 12Vac/dc 2A. 12Vac/dc
Contact Resistance: <15m <15m <15m
Insulation Resistance: >10 M >10 M >10 M
Dielectric Strength: >2.5kVac >2.5kVac >2.0kVac
Operating Temp. Range: 20C to +85C 20C to +85C 20C to +85C
Operation Pressure (typ): 9.18 newtons 9.18 newtons 6.22 newtons
Materials
Moulding: Glass Filled Nylon Brass, Glass Filled Nylon Brass, Glass Filled Nylon Brass,
Body: Brass, Chrome Plated Brass, Chrome Plated Brass, Chrome Plated
Contacts/Terms: Brass, Silver Plated Brass, Silver Plated Brass, Silver Plated
Variant Button Colour: Standard - Black, Button Colour: Standard - Black, Button Colour: Standard - Black,
/RD (Red) /RD (Red) /RD (Red)
RoHS Compliant Compliant
Compliant
Switches 211
