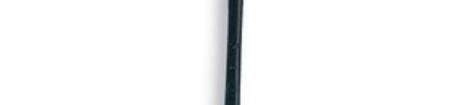

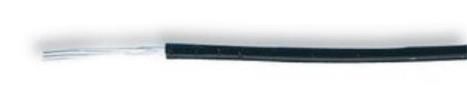

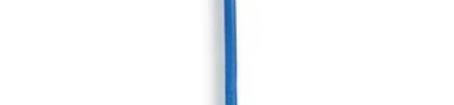

DATE:16/03/2011 ORIGINATOR:A.J.R. SPECIFICATIONDATASHEET CABLETYPE PTFEINSULATEDEQUIPMENTWIRE. GENERALDESCRIPTION SILVERANDNICKELPLATEDCOPPERCONDUCTORS, PTFEINSULATEDTYPEB(SPCW)ANDNB(NPCW). RELEVANTSTANDARDS BS3G210:1996andDEFSTAN6112Part8 CITE.P.N. ConductorDetails Insulation Overall Conductor Mass Longterm Number Thickness Diameter Resistance current (/km 20 C) rating *SforSPCW Size Stranding O/D Area Min. Nom. Min. Max. SPCW NPCW Max. Max. *NforNPCW AWG (mm) (mm) (mm) (mm) (mm) (mm) (mm) (Max) (Max) (kg/km) *(A) HP26*AB. 26 01/0.400 0.40 0.126 0.20 0.25 0.80 1.00 146.00 148.00 2.56 4.0 HP22*AB. 22 01/0.600 0.60 0.283 0.20 0.25 1.00 1.20 64.30 65.00 4.38 7.0 HP19*AB. 19** 01/0.900 0.90 0.636 0.20 0.25 1.30 1.50 28.50 28.60 8.42 12.0 HP32*BB. 32 07/0.080 0.24 0.035 0.20 0.25 0.65 0.84 558.00 605.00 1.44 1.5 HP30*BB. 30 07/0.100 0.30 0.055 0.20 0.25 0.70 0.90 353.00 377.00 1.75 2.0 HP28*BB. 28 07/0.120 0.36 0.079 0.20 0.25 0.76 0.96 244.00 258.00 2.10 3.0 HP26*BB. 26 07/0.150 0.45 0.124 0.20 0.25 0.85 1.05 159.00 166.00 2.74 4.0 HP24*BB. 24 07/0.200 0.60 0.220 0.20 0.25 1.00 1.20 88.30 91.20 3.95 6.0 HP26*CB. 26 19/0.100 0.50 0.149 0.20 0.25 0.90 1.10 130.00 139.00 3.09 5.0 HP24*CB. 24 19/0.120 0.60 0.215 0.20 0.25 1.00 1.20 89.80 94.90 3.89 6.0 HP22*CB. 22 19/0.150 0.75 0.336 0.20 0.25 1.15 1.35 58.60 61.30 5.44 8.0 HP20*CB. 20 19/0.200 1.00 0.597 0.20 0.25 1.40 1.60 32.50 33.60 8.43 11.0 HP18*CB. 18 19/0.250 1.25 0.933 0.20 0.25 1.65 1.85 20.60 21.20 12.11 15.0 HP16*CB. 16** 19/0.300 1.50 1.342 0.20 0.25 1.90 2.10 14.30 14.60 16.25 20.0 *Currentratingsarebasedonatemperatureriseof40 C(singlewireinfreeair) **Manufacturedandtestedinaccordancewith,butnotcontainedwithinBS3G210 CABLECHARACTERISTICS VOLTAGERATING: 600Vrms TEMPERATURERATING: 75 Cto+190 CforSILVERplatedcopperconductors 75 Cto+260 CforNICKELplatedcopperconductors PTFEisunaffectedbyoils,lubricants,hydraulicfluidsandaircraftfuel.Thematerialisnonflammable,resistantto solderirondamageandishighlyflexible.Althoughwidelyusedforhighperformanceaerospaceapplications,PTFE wiresareusedinenvironmentswherethedemands,whetherthermal,electricalormechanical,aresevere. Availablein11basiccoloursBlack,Brown,Red,Orange,Yellow,Green,Blue,Violet,Grey,White,Pink (plusnatural)alongwithbiandtricolourcombinations. PTFE Insulation is applied either by extrusion, or by spiral lapping and sintering. Allextrudedwiresizes/coloursareRoHScompliant Informationinthispublicationandotherwisesuppliedtousersisbasedonourgeneralexperienceandisgiveningoodfaith, butbecauseofthemanyparticularfactorswhichareoutsideourknowledgewhichaffecttheuseofproducts,nowarrantyis givennorisimpliedwithrespecttosuchinformation.Usersshouldmaketheirownenquiriestodeterminethesuitabilityof productsforanyparticularuse.Freedomunderpatents,copyrightandregistereddesignscannotbeassumed. Thisdesignmaybesubjecttochangewithoutnotificationpleasecheckthisdatasheetisstillcurrent. VR1129X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carlisle interconnect technologies manufacturer: Other Similar products are found below : 1-1818-524-WH36 1-1836-524-WH36 1-3636-463-5224 1-3636-463-5208 1-3636-524-WH36 1-3636-600-5208 1-3636-617-5212 1-3636- 620-5208 1-3636-90B-4236 1-3737-600-3212 1-G6G6-600-3408 1-K6K6-30A-4236 222CCSF AECAFLAD0504 (PS50040-43-2) 1-1818- 90B-4236 PCS-D8D8-521-48 1-3636-461-5208 1-3636-461-5224 P677-2 1-1818-601-3212 3115909 M16878/6-BEE-2 M16878/6-BEE-0 M16878/6-BFE-0 M16878/4-BCE-2 M16878/4 BEE-6 M16878/4 BFE-6 221CC 5038009 M22759/18-16-9 1-3636-617-5218 WHU18- 1818-048 1-K6K6-600-4306 1-3637-601-5204 1-1818-601-3211 1-1818-601-3213 WHU18-3636-024 M16878/6-BDE-0 M16878/4-BCE-9 M16878/4-BCE-0 M16878/5 BDE-2 1-3636-601-5310 1-D8D8-521-4248 BACC13AU01LLA171 1-1818-601-3207 1-3737-600-3216 WHU18-1818-096 1-3636-621-5208 1-3637-601-5202 KU3636-036
