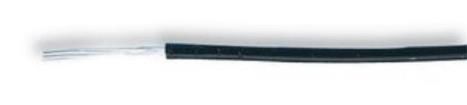

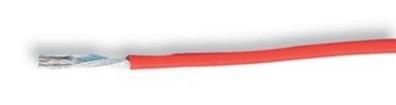

DATE: 16/03/2011 ORIGINATOR: A.J.R. SPECIFICATION DATA SHEET CABLE TYPE PTFE INSULATED EQUIPMENT WIRE GENERAL DESCRIPTION SILVER AND NICKEL PLATED COPPER CONDUCTORS, PTFE INSULATED TYPE A (SPCW) AND NA (NPCW). RELEVANT STANDARDS BS 3G 210 : 1996 E.P.N. Number Conductor Details Insulation Overall Conductor Mass Long term Thickness Diameter Resistance current rating (/km 20C) *S for SPCW Size Stranding O/D Area Min. Nom. Min. Max. SPCW NPCW Max. Max. *N for NPCW AWG (mm) (mm) (mm) (mm) (mm) (mm) (mm) (Max) (Max) (kg/km) *(A) HP30*AA. 30 01/0.250 0.25 0.049 0.10 0.15 0.45 0.60 377.00 387.00 0.96 2.0 HP28*AA. 28 01/0.320 0.32 0.080 0.10 0.15 0.52 0.67 229.00 234.00 1.32 3.0 HP26*AA. 26 01/0.400 0.40 0.126 0.10 0.15 0.60 0.75 146.00 148.00 1.83 4.0 HP22*AA. **22 01/0.600 0.60 0.283 0.10 0.15 0.80 0.95 64.30 65.00 3.88 7.0** HP32*BA. 32 07/0.080 0.24 0.035 0.10 0.15 0.44 0.59 558.00 605.00 0.84 1.5 HP30*BA. 30 07/0.100 0.30 0.055 0.10 0.15 0.50 0.65 353.00 377.00 1.10 2.0 HP28*BA. 28 07/0.120 0.36 0.079 0.10 0.15 0.56 0.71 244.00 258.00 1.40 3.0 HP26*BA. 26 07/0.150 0.45 0.124 0.10 0.15 0.65 0.80 159.00 166.00 1.96 4.0 HP24*BA. 24 07/0.200 0.60 0.220 0.10 0.15 0.80 0.95 88.30 91.20 3.04 6.0 HP26*CA. 26 19/0.100 0.50 0.149 0.10 0.15 0.70 0.85 130.00 139.00 2.26 5.0 HP24*CA. 24 19/0.120 0.60 0.215 0.10 0.15 0.80 0.95 89.80 94.90 2.99 6.0 HP22*CA. 22 19/0.150 0.75 0.336 0.10 0.15 0.95 1.10 58.60 61.30 4.41 8.0 HP20*CA. 20 19/0.200 1.00 0.597 0.10 0.15 1.20 1.35 32.50 33.60 7.19 11.0 *Current ratings are based on a temperature rise of 40C (single wire in free air) **Not an actual size within the BS3G210 specification CABLE CHARACTERISTICS : VOLTAGE RATING: 300 V rms TEMPERATURE RATING: -75C to +190C for SILVER plated copper conductors -75C to +260C for NICKEL plated copper conductors PTFE is unaffected by oils, lubricants, hydraulic fluids and aircraft fuel. The material is non flammable, resistant to solder iron damage and is highly flexible. Although widely used for high performance aerospace applications, PTFE wires are used in environments where the demands, whether thermal, electrical or mechanical, are severe. Available in 11 basic colours Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White, Pink (plus natural) along with bi- and tri- colour combinations. PTFE Insulation is applied either by extrusion, or by spiral lapping and sintering. All extruded wire sizes/colours are RoHS compliant Information in this publication and otherwise supplied to users is based on our general experience and is given in good faith , but because of the many particular factors which are outside our knowledge which affect the use of products, no warranty is given nor is implied with respect to such information. Users should make their own enquiries to determine the suitability of products for any particular use. Freedom under patents, copyright and registered designs cannot be assumed. This design may be subject to change without notification - please check this data sheet is still current. VR1129 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Carlisle Interconnect Technologies manufacturer: Other Similar products are found below : 1-1818-524-WH36 1-1836-524-WH36 1-3636-463-5224 1-3636-463-5208 1-3636-524-WH36 1-3636-600-5208 1-3636-617-5212 1-3636-620-5208 1-3636-90B-4236 1-3737-600-3212 1-G6G6-600-3408 1-K6K6-30A-4236 222CCSF AECAFLAD0504 (PS50040-43-2) 1-1818-90B-4236 PCS- D8D8-521-48 1-3636-461-5208 P677-2 1-1818-601-3212 WHU18-1818-120 3115909 M16878/6-BDE-2 M16878/6-BEE-9 M16878/4 BEE-6 M17/94-RG179 221CC 1-3636-617-5218 WHU18-1818-048 1-K6K6-600-4303 1-K6K6-600-4306 1-3637-601-5204 1-1818-601-3211 1-1818- 601-3213 WHU18-3636-024 M16878/6-BCE-0 M16878/6-BFE-9 M16878/4 BDE-0 M16878/4 BEE-9 M16878/5 BDE-2 M22759/16-24-9 1-3636- 601-5310 1-D8D8-521-4248 BACC13AU01LLA171 1-1818-601-3207 1-3737-600-3216 5450 1-3637-601-5202 KU3636-036 200-89569-101 M22759/23-24-9
