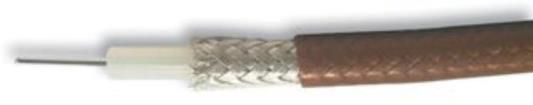

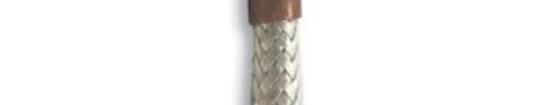

ISSUE: 2 DATE: 29/09/2011 ORIGINATOR: A.J.R. SPECIFICATION DATA SHEET CABLE TYPE RG 142 B/U 50 CO-AXIAL CABLE GENERAL DESCRIPTION RADIO FREQUENCY, FLEXIBLE, COAXIAL, 50 , SOLID S.P.C.C.S. CONDUCTOR, PTFE DIELECTRIC, DOUBLE SPCW SCREEN, FEP SHEATH. RELEVANT STANDARDS MIL-C-17/158A-00001 COMPONENT MATERIAL BREAKDOWN DIAMETER (nom) mm Conductor 01/0.940mm SILVER PLATED COPPER CLAD STEEL 0.94 Dielectric EXTRUDED SOLID PTFE (NATURAL) 2.95 Braid 1 0.127mm S.P.C.W. BRAID (94.8% NOMINAL COVERAGE) 3.51 Braid 2 0.127mm S.P.C.W. BRAID (93.1% NOMINAL COVERAGE) 4.07 Jacket EXTRUDED FEP (TRANSLUCENT BROWN) 4.95 CABLE CHARACTERISTICS CONTINUOUS WORKING VOLTAGE: 1400 V RMS MAXIMUM OPERATING TEMPERATURE RANGE: -55C to +200C CONDUCTOR RESISTANCE: 64.00 /KM MAXIMUM 20C VELOCITY OF PROPAGATION: 69 % CHARACTERISTIC IMPEDANCE: 50 2 Ohms CAPACITANCE: 105 pF/m MAXIMUM ATTENUATION: 9.84 dB/100 Mts NOMINAL 50 MHz 14.44 dB/100 Mts NOMINAL 100 MHz 30.51 dB/100 Mts MAXIMUM 400 MHz 50.20 dB/100 Mts NOMINAL 1000 MHz 76.44 dB/100 Mts NOMINAL 2000 MHz 96.13 dB/100 Mts NOMINAL 3000 MHz 189.63 dB/100 Mts NOMINAL 8000 MHz 280.18 dB/100 Mts NOMINAL 12400 MHz DIMENSIONS: 4.95mm 0.10mm WEIGHT: 64.86 KG/KM NOMINAL Information in this publication and otherwise supplied to users is based on our general experience and is given in good faith, but because of the many particular factors which are outside our knowledge which affect the use of products, no warranty is given nor is implied with respect to such information. Users should make their own enquiries to determine the suitability of products for any particular use. Freedom under patents, copyright and registered designs cannot be assumed. This design may be subject to change without notification please check this data sheet is still correct. VR1127 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carlisle interconnect technologies manufacturer: Other Similar products are found below : 1-1818-524-WH36 1-1836-524-WH36 1-3636-463-5224 1-3636-463-5208 1-3636-524-WH36 1-3636-600-5208 1-3636-617-5212 1-3636- 620-5208 1-3636-90B-4236 1-3737-600-3212 1-G6G6-600-3408 1-K6K6-30A-4236 222CCSF AECAFLAD0504 (PS50040-43-2) 1-1818- 90B-4236 PCS-D8D8-521-48 1-3636-461-5208 1-3636-461-5224 P677-2 1-1818-601-3212 3115909 M16878/6-BEE-2 M16878/6-BEE-0 M16878/6-BFE-0 M16878/4-BCE-2 M16878/4 BEE-6 M16878/4 BFE-6 221CC 5038009 M22759/18-16-9 1-3636-617-5218 WHU18- 1818-048 1-K6K6-600-4306 1-3637-601-5204 1-1818-601-3211 1-1818-601-3213 WHU18-3636-024 M16878/6-BDE-0 M16878/4-BCE-9 M16878/4-BCE-0 M16878/5 BDE-2 1-3636-601-5310 1-D8D8-521-4248 BACC13AU01LLA171 1-1818-601-3207 1-3737-600-3216 WHU18-1818-096 1-3636-621-5208 1-3637-601-5202 KU3636-036
