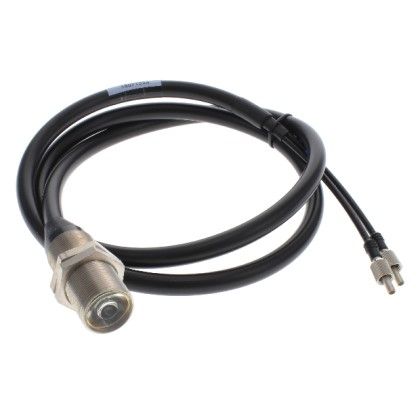

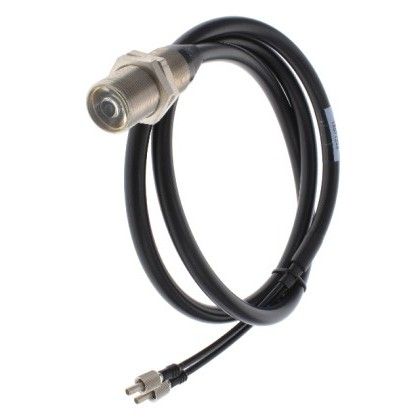

FPDK01SCC100 Carlo Gavazzi

Photoelectrics Fibre Optics, Plastic Types FPT, FPD Fibre diameter 0.25, 0.5 or 1.0 Bending radius 10 or 25 mm For use with PD40 and PD60 series Type Selection Length Diameter Bending Distance mm Dimensions Ordering no. cm mm radius mm PD40 PD60 mm 5.5 19 200 0.5/1.0 10 15 30 FPD 01 SBS 200 200 0.5/1.0 10 50 100 FPT 01 SBS 200 M3 5.5 19 90 3 11 200 0.5/1.0 10 15 30 FPD 02 SBS 200 1.8 2.5 M3 3 11 200 1.0/2.2 25 120 200 FPT 03 SCM 200 200 1.0/2.2 25 120 200 FPT 03 SCS 200 M4 90 3 11 200 1.0/2.2 25 120 200 FPT 04 SCS 200 1.8 2.5 M4 5.5 19 90 3 11 200 0.5/1.0 10 50 100 FPT 05 SBS 200 1.5 2.5 M3 310 5 200 1.0/2.2 25 40 80 FPD 06 SCC 200 3 M4 5 13 90 4 200 1.0/2.2 25 50 80 FPD 07 SCS 200 3 4 M6x1 flat 5mm 13 4 200 1.0/2.2 25 50 80 FPD 08 SCM 200 200 1.0/2.2 25 50 80 FPD 08 SCS 200 4 M6x1 flat 5mm 2000.25/1.0 10 5 10 FPD 09 SAS 200 12 200 0.25/1.0 10 50 100 FPT 09 SAS 200 1.5 Specifications are subject to change without notice (09.02.06) 1 4.5 4.5 4.5 2.1 2.1 2.1 M 2.5 M 2.5FPT, FPD General Specifications Temperature range Materials Operating temperature -25 to +60C (-13 to +140F) Fibre PE (polyethylene) Storage temperature -40 to +80C (-40 to +176F) Sheath PMMA (polymethyl methacrylate) Detection head Nickel-plated brass Accessories AFPT 02 AFP 02 AFP 01 Head: NPB, lens: Plastic Fibre cutter For fibre optic FPD 02../FPD 09 .. 8 5.5 19 PD60 PD40 FPT03SC. 1200 mm 500 mm 43 FPT01SBC 400 mm 200 mm Ordering Key FPD 01 SBS 200 Optic Fibre Fibre material P Plastic, PMMA Fibre type D Diffuse T Through-beam Sensor head 01-99 Forthrunning type number Sheath material S Standard plastic, Polyethylene Fibre diameter A 0.25 mm B 0.5 mm C 1.0 mm Core condition S Single core M Multicore C Coax Fibre length 001-999 cm 1 cm to 9.9 m 2 Specifications are subject to change without notice (09.02.06) 4.5 2.1 4 19
