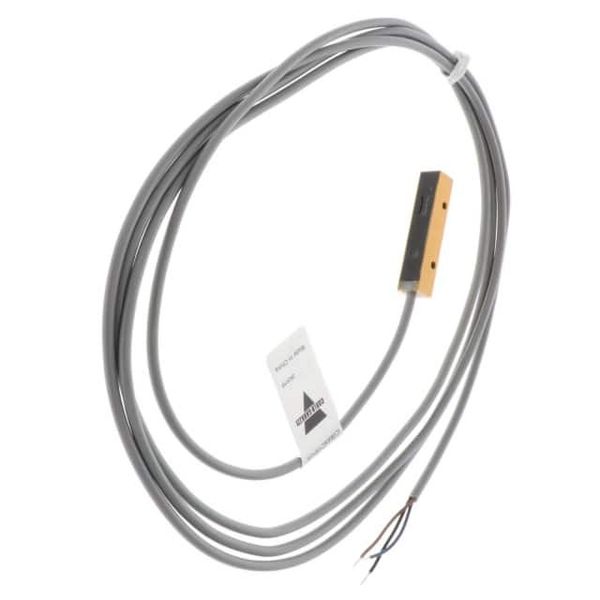

Proximity Sensors Inductive Rectangular, Nickel-plated Brass Housing Types IC, ID, Cable and Plug Nickel-plated brass housings Sensing distance: 1.5 or 5 mm For flush mounting Output: IC 08: Transistor, NPN/PNP, normally open ID 25: Transistor, NPN/PNP, normally open or change over Power supply: 10 to 30 VDC Protection: Short-circuit 2 m PVC cable or M8 plug (IC 08) IC 08 ID 25 Product Description Ordering Key IC 08 ANC 15 NO M5-K Inductive proximity sensor in Output configured as PNP Ind. prox. switch squared nickel-plated brass or NPN, normally open (IC Housing style housing. This series is suit- and ID types), change over Housing size able for the control of axial (ID types). Connection with 2 Housing material and rotational movements. m PVC cable (IC and ID Housing length types or M8 plug (IC types). Detection principle Sensing distance Output type Output configuration Connection Type Selection Rated Con- Dimen- Or deri ng no. Ord eri ng no. Or der ing no. Ord er ing no. op. nec- sions Transistor, NPN Transistor, NPN Transistor, PNP Transistor, PNP dist. (S ) tion mm Normally open Change over Normally open Change over n 1.5 mm Cable 8 x 8 x 40 IC 08 ANC 15 NO-K IC 08 ANC 15 PO-K 1.5 mm Plug 8 x 8 x 60 IC 08 ANC 15 NO M5-K IC 08 ANC 15 PO M5-K 5 mm Cable 25x10 x 50 ID 25 ANC 05 NO-K ID 25 ANC 05 NA-K ID 25 ANC 05 PO-K ID 25 ANC 05 PA-K All types for flush mounting in metal Specifications Rated operational volt. (U ) 10 to 30 VDC (ripple inc lud ed) Sensing distance IC08 1.5 mm B ID25 5 mm Ripple 10% Effective operating dist. (Sr) 0.9 x Sn Sr 1.1 x Sn Rated operational current (I) e Continuous 200 mA 25C Usable operating dist. (S ) 0.85 x S S 1.15 x S u r u r No-load supply current (I) Ambient temperature o IC08 .. O-K 10 mA (ON) Operating -25 to +70C (-13 to +158F) IC08 .. OM5-K 9 mA (ON) Storage -30 to +75C (-22 to +167F) ID 25 10 mA (ON) Degree of protection Voltage drop (U ) IC08 .. O-K IP 65 d IC08 .. O-K < 1.7 V ( I ) IC08 .. OM5-K IP 67 (Nema 1, 3, 4, 6, 13) max IC08 .. OM5-K < 1.0 V ( I ) ID25 IP 67 (Nema 1, 3, 4, 6, 13) max ID 25 < 1.0 V ( I ) max Housing material Nickel-plated brass Protection Short circuit CE-marking Yes Frequency of op. cycles (f) Connection Cable, 2 m, PVC, AWG 26 or IC08 .. O-K 1 kHz Plug M8, CONH5A-xxx serie IC08 .. OM5-K 2 kHz (plug versions only IC 08) ID 25 1 kHz Indication for output ON LED, yellow (ID25 only) Specifications are subject to change without notice (26.09.11) 1IC, ID, Cable and Plug Dimensions 8 8 8 4,5 8 2,4 5 3 10 5 15 25 2 x M3 20 40 20 60 2 x M3 LED 8 10 10 50 M8 x 1 IC 08 ANC 15 .O-K IC 08 ANC 15 .O M5-K ID 25 ANC 05 ..-K Wiring Dia g rams + + 1 BN + + 1 BN 1 BN 1 BN 4 BK 4 BK 2 WH 2 WH 4 BK 4 BK 3 BU 3 BU 3 BU 3 BU - - - - NPN - Normally open NPN - Change over PNP - Normally open PNP - Change over Installation Hints To avoid interference from inductive voltage/ Relief of cable strain Protection of the sensing face Switch mounted on mobile carrier current peaks, separate the prox. switch pow- er cables from any other power cables, e.g. motor, contactor or solenoid cables Incorrect Correct The cable should not be pulled A proximity switch should not serve as Any repetitive flexing of the mechanical stop cable should be avoided 2 Specifications are subject to change without notice (26.09.11)
