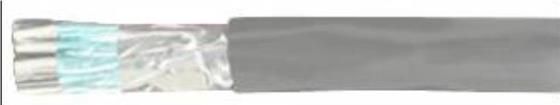

Computer Cable Electronics Multi-Paired, Foil/Braid Shield, Lo-Cap UL 2919, NEC Type CM (UL) c(UL) CMH Product Construction: Conductor: 24 AWG fully annealed stranded tinned copper per ASTM B33 T wisted pairs Insulation: Premium-grade, coIor-coded Lo-Cap foamed polypropylene Color code: See chart below Shield: NOM. NOM. NOMINAL NOMINAL VEL. INSULATION JACKET NOMINAL DCR CAP.* 100% Flexfoil aluminum/polyester with NO. OF NOM. THICKNESS THICKNESS O.D. /kft pF/ft 25% overlap, minimum, foil facing out CATALOG OF AWG COND. PROP., IMP., NUMBER PAIRS SIZE STRAND INCHES mm INCHES mm INCHES mm COND. SHLD. % A B Stranded tinned copper drain wir e 65% tinned copper braid C0515A 2 24 7/32 0.016 0.41 0.032 0.81 0.276 7.01 25.7 3.0 78 132 10.2 18.4 Jacket: C0516A 3 24 7/32 0.016 0.41 0.032 0.81 0.290 7.37 25.7 3.2 78 132 9.9 17.8 PVC, gray C0517A 4 24 7/32 0.016 0.41 0.032 0.81 0.315 8.00 25.7 3.3 78 132 9.9 17.8 T emperature range: -20C to +80C C0518A 5 24 7/32 0.016 0.41 0.032 0.81 0.340 8.64 25.7 4.2 78 132 9.9 17.8 Applications: High-speed computer inter connects C0519A 6 24 7/32 0.016 0.41 0.032 0.81 0.368 9.35 25.7 3.6 78 141 9.2 16.6 CAD/CAM systems C0520A 7 24 7/32 0.016 0.41 0.032 0.81 0.370 9.40 25.7 3.5 78 141 9.2 16.6 EIA RS-232 and RS-423 systems C0521A 8 24 7/32 0.016 0.41 0.032 0.81 0.397 10.08 25.7 2.7 78 141 9.2 16.6 Control circuits Industrial equipment C0522A 10 24 7/32 0.016 0.41 0.038 0.97 0.473 12.01 25.7 2.4 78 141 9.2 16.6 Low signal distortion data r equirements C0523A 12.5 24 7/32 0.016 0.41 0.038 0.97 0.486 12.34 25.7 2.4 78 141 9.2 16.6 Suggested voltage rating: 30 volts Suitable for EIA RS-485 120 C0524A 15 24 7/32 0.016 0.41 0.048 1.22 0.555 14.10 25.7 2.6 78 141 9.2 16.6 applications C0525A 18 24 7/32 0.016 0.41 0.048 1.22 0.585 14.86 25.7 2.1 78 141 9.2 16.6 Compliances: C0526A 25 24 7/32 0.016 0.41 0.048 1.22 0.677 17.20 25.7 2.0 78 141 9.2 16.6 NEC Article 800 T ype CM/CMH *A Capacitance between conductors (UL: 75C, 300 V) *B Capacitance between one conductor and other conductors connected to shield UL Style 2919 (UL: 80C, 30 V) Data subject to change. RoHS Compliant Directive 2011/65/EU Designed to meet UL 70,000 BTU Vertical Tray Flame Test Color Code Chart CE: Low V oltage Directive (LVD) NO. OF NO. OF NO. OF 2006/95/EC PAIRS COLOR PAIRS COLOR PAIRS COLOR Assists system designers in meeting WhiteBlue Stripe RedGray Stripe YellowGreen Stripe FCC Docket 20789 demands 1 10 18 BlueWhite Stripe GrayRed Stripe GreenYellow Stripe Packaging: WhiteOrange Stripe BlackBlue Stripe YellowBrown Stripe 2 11 19 OrangeWhite Stripe BlueBlack Stripe BrownYellow Stripe Please contact Customer Service for WhiteGreen Stripe BlackOrange Stripe YellowGray Stripe packaging and color options 3 12 20 GreenWhite Stripe OrangeBlack Stripe GrayYellow Stripe WhiteBrown Stripe BlackGreen Stripe PurpleBlue Stripe 4 13 21 BrownWhite Stripe GreenBlack Stripe BluePurple Stripe WhiteGray Stripe BlackBrown Stripe PurpleOrange Stripe 5 14 22 GrayWhite Stripe BrownBlack Stripe OrangePurple Stripe RedBlue Stripe BlackGray Stripe PurpleGreen Stripe 6 15 23 BlueRed Stripe GrayBlack Stripe GreenPurple Stripe RedOrange Stripe YellowBlue Stripe PurpleBrown Stripe 7 16 24 OrangeRed Stripe BlueYellow Stripe BrownPurple Stripe RedGreen Stripe YellowOrange Stripe PurpleGray Stripe 8 17 25 GreenRed Stripe OrangeYellow Stripe GrayPurple Stripe RedBrown Stripe Single Conductor: Green with Yellow Stripe 9 BrownRed Stripe 73X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 01776.38.01 76843.38.06 C0754A.21.10 C1321.41.01 C1670A.41.10 C2015A.12.04 C2015A.12.19 C2526A.18.10 C3120.18.86 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 09205.41.01 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C3068.41.86 C3122.41.86 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 C0783A.41.10 E1032S.41.10 E2024S.41.10 01360.35T.01 01342.35T.01 C0744A.41.10 C2514A.41.10
