C2688A.41.10 Carol

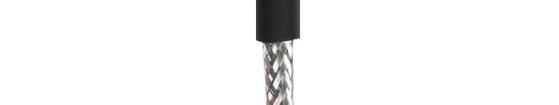

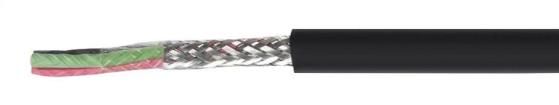

Electronics Communication & Control Cable, Multi-Conductor Multi-Conductor, Braid Shield ** UL 2095, NEC/CEC Type CMG UL/CSA Product Construction: Conductor: 22 thru 16 AWG fully annealed stranded tinned copper per ASTM B33 Insulation: Pr emium-grade, coIor-coded PVC NOM. INSULATION NOM. JACKET NOM. CAP.* Color code: See chart below THICKNESS THICKNESS NOMINAL O.D. pF/ft CATALOG NO. OF AWG COND. NUMBER COND. SIZE STRAND INCHES mm INCHES mm INCHES mm A B Shield: 75% tinned copper braid 2 22 7/30 0.016 0.41 0.032 0.81 0.212 5.38 40.0 72.0 C2679A Jacket: 3 22 7/30 0.016 0.41 0.032 0.81 0.221 5.61 37.0 67.0 C2678A PVC, gray 4 22 7/30 0.016 0.41 0.032 0.81 0.237 6.02 37.0 67.0 C2680A Temperature range: -20C to +80C 2 20 7/28 0.016 0.41 0.032 0.81 0.230 5.84 44.0 80.0 C2681A Applications: Electr onic circuits where RF shielding 3 20 7/28 0.016 0.41 0.032 0.81 0.240 6.10 40.0 72.0 C1332A is required 4 20 7/28 0.016 0.41 0.032 0.81 0.259 6.58 40.0 73.0 C2683A Radio transmitters Sound systems 2 18 16/30 0.016 0.41 0.032 0.81 0.252 6.40 49.0 89.0 C2686A Recor ding studios 3 18 16/30 0.016 0.41 0.032 0.81 0.264 6.71 45.0 80.5 C2687A Provides good flexibility 4 18 16/30 0.016 0.41 0.032 0.81 0.286 7.26 45.0 80.5 C2688A Excellent shielding for noise r eduction Suggested voltage rating: 300 volts 2 16 19/29 0.020 0.51 0.032 0.81 0.280 7.11 51.0 91.0 C2689A Compliances: *A Capacitance between conductors *B Capacitance between one conductor and other conductors connected to shield NEC Article 800 T ype CM (UL: 75C) **CSA or c(UL) UL Style 2095 (UL: 80C, 300 V) Data subject to change. RoHS Compliant Directive 2011/65/EU Designed to meet UL 70,000 BTU Vertical Tray Flame Test Color Code Chart CSA CMG (CSA: 60C) NO. OF Passes CSA CMG Flame Test COND. COLOR CE: Low Voltage Directive (LVD) 1 Black 2006/95/EC 2 Red Packaging: 3 White Please contact Customer Service for 4 Green packaging and color options 30X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 01776.38.01 76843.38.06 C0754A.21.10 C1321.41.01 C1670A.41.10 C2015A.12.04 C2015A.12.19 C2526A.18.10 C3120.18.86 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 09205.41.01 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C3068.41.86 C3122.41.86 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 C0783A.41.10 E1032S.41.10 E2024S.41.10 01360.35T.01 01342.35T.01 C0744A.41.10 C2514A.41.10
