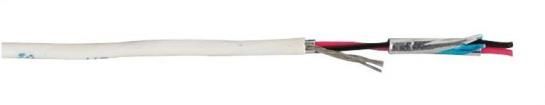

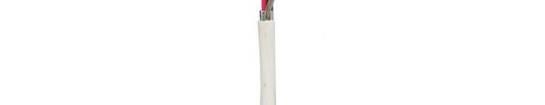

Communication & Control Cable, Multi-Conductor Electronics Multi-Conductor, Foil Shield NEC Type CMP (UL) c(UL) and CL3P Product Construction: Conductor: 22 thru 16 A WG fully annealed stranded tinned or bare copper per ASTM B3, B8 or B33 Insulation: Pr emium-grade, coIor-coded NOM. INSULATION NOM. JACKET NOM. CAP.* Flexguard PVC THICKNESS THICKNESS NOMINAL O.D. pF/ft CATALOG NO. OF AWG COND. Color code: See chart below NUMBER COND. SIZE STRAND INCHES mm INCHES mm INCHES mm A B Shield: C3158 2 22 7/30 TC 0.008 0.20 0.015 0.38 0.127 3.23 51.0 91.0 100% Flexfoil aluminum/polyester foil with 25% overlap, minimum C3159 4 22 7/30 TC 0.008 0.20 0.015 0.38 0.146 3.71 45.0 81.0 Stranded tinned copper drain wir e C3060 2 18 Solid BC 0.008 0.20 0.015 0.38 0.148 3.76 67.0 120.0 Jacket: C3061 4 18 Solid BC 0.008 0.20 0.015 0.38 0.171 4.34 58.0 104.0 Flexguard PVC, natural C3062 2 18 7/26 BC 0.008 0.20 0.015 0.38 0.164 4.17 61.0 110.0 Temperature range: 0C to +75C Sequential footage marked to facilitate C3064 3 18 7/26 BC 0.008 0.20 0.015 0.38 0.169 4.29 53.0 96.0 installation C3063 4 18 7/26 BC 0.008 0.20 0.015 0.38 0.185 4.70 53.0 96.0 Includes ripcord C3065 6 18 7/26 BC 0.010 0.25 0.015 0.38 0.230 5.84 48.0 86.0 Applications: Intercom systems C3183 10 18 7/26 BC 0.010 0.25 0.015 0.38 0.295 7.49 47.0 84.0 Backgr ound music C3184 12 18 7/26 BC 0.010 0.25 0.015 0.38 0.308 7.82 52.5 94.6 Audio systems C3068 2 16 19/.0117 BC 0.009 0.23 0.015 0.38 0.187 4.75 75.0 134.0 Power -limited control circuits *A Capacitance between conductors Suggested voltage rating: 150 volts *B Capacitance between one conductor and other conductors connected to shield Data subject to change. Compliances: NEC Article 725 (UL: 75C, 150 V) NEC Article 800 (UL: 75C, 300 V) Color Code Chart RoHS Compliant Dir ective 2011/65/EU Designed to meet NFP A 262 and CSA NO. OF FT6 Steiner Tunnel Fire Tests for Plenum COND. COLOR Applications 1 Black CE: Low V oltage Directive (LVD) 2 White 2006/95/EC 3 Red Packaging: 4 Green Please contact Customer Service for 5 Brown packaging and color options 6 Blue 7 Orange 8 Yellow 9 Purple 10 Gray 11 Pink 12 Tan 21X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 01776.38.01 76843.38.06 C0754A.21.10 C1321.41.01 C1670A.41.10 C2015A.12.04 C2015A.12.19 C2526A.18.10 C3120.18.86 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 09205.41.01 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C3068.41.86 C3122.41.86 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 C0783A.41.10 E1032S.41.10 E2024S.41.10 01360.35T.01 01342.35T.01 C0744A.41.10 C2514A.41.10
