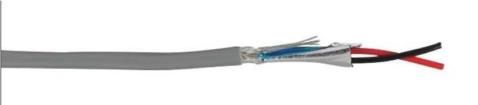

Electronics Sound, Alarm and Security Cable Multi-Conductor, Shielded, Riser NEC/CEC Type CMR and/or NEC Type CL3R and FPLR Product Construction: Conductor: Stranded or solid bar e copper per ASTM B3, B8 and B286 Insulation: Premium-grade, coIor-coded S-R PVC NOM. INSULATION NOM. JACKET Color code: See chart below THICKNESS WALL NOMINAL O.D. CATALOG NO. OF AWG COND. Shield: NUMBER COND. SIZE STRAND INCHES mm INCHES mm INCHES mm Overall Flexfoil polyester supported aluminum foil E2000S 2 22 Solid 0.008 0.20 0.015 0.38 0.117 2.97 Stranded tinned copper drain wire E2002S 2 22 7/30 0.008 0.20 0.015 0.38 0.132 3.35 Jacket: E2003S 3 22 7/30 0.008 0.20 0.015 0.38 0.135 3.43 Premium-grade PVC, gray E2004S 4 22 7/30 0.008 0.20 0.015 0.38 0.147 3.73 Sequential footage markings to facilitate installation E2006S 6 22 7/30 0.008 0.20 0.015 0.38 0.173 4.39 Temperature range: -20C to +75C E2008S 8 22 7/30 0.008 0.20 0.015 0.38 0.195 4.95 Includes ripcord E2010S 10 22 7/30 0.008 0.20 0.015 0.38 0.218 5.54 Applications: E2012S 12 22 7/30 0.010 0.25 0.008 0.20 0.222 5.64 Power -limited control circuits E2022S 2 20 7/28 0.007 0.18 0.008 0.20 0.142 3.61 Wiring of the following systems: Intercom E2023S 3 20 7/28 0.007 0.18 0.008 0.20 0.151 3.84 Security E2024S 4 20 7/28 0.007 0.18 0.008 0.20 0.161 4.09 Audio Background music E2030S 2 18 Solid 0.009 0.20 0.008 0.20 0.147 3.73 Suggested voltage rating: 300 volts E2032S 2 18 7/26 0.008 0.20 0.015 0.38 0.159 4.04 Compliances: E2033S 3 18 7/26 0.008 0.20 0.015 0.38 0.168 4.27 NEC Article 725 T ype CL3R (UL: 75C, 300 V) E2034S 4 18 7/26 0.008 0.20 0.015 0.38 0.184 4.67 NEC Article 800 T ype CMR E2036S 6 18 7/26 0.008 0.20 0.015 0.38 0.221 5.61 (UL: 75C, 300 V) E2038S 8 18 7/26 0.008 0.20 0.015 0.38 0.240 6.10 NEC Article 760 T ype FPLR (UL: 75C, 300 V) E2040S 10 18 7/26 0.008 0.20 0.015 0.38 0.287 7.29 RoHS Compliant Directive 2011/65/EU E2041S 12 18 7/26 0.008 0.20 0.015 0.38 0.296 7.52 Suitable for use in the State of California E2042S 2 16 19/.0117 0.009 0.23 0.015 0.38 0.189 4.80 Packaging: E2043S 3 16 19/.0117 0.009 0.23 0.015 0.38 0.198 5.03 Please contact Customer Service for packaging and color options E2044S 4 16 19/.0117 0.009 0.23 0.015 0.38 0.219 5.56 E2052S* 2 14 19/.0147 0.013 0.33 0.015 0.38 0.245 6.22 E2054S* 4 14 19/.0147 0.013 0.33 0.015 0.38 0.269 6.83 Color Code Chart 5 E2062S* 2 12 19/.0185 0.013 0.33 0.015 0.38 0.281 7.14 NO. OF NO. OF COND. COLOR COND. COLOR E2064S* 4 12 19/.0185 0.013 0.33 0.015 0.38 0.312 7.92 1 Black 7 Orange * NEC CL3R/FPLR only 2 Red 8 Yellow Data subject to change. 3 White 9 Purple 4 Green 10 Gray 5 Brown 11 Pink 6 Blue 12 Tan 116X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 01776.38.01 76843.38.06 C0754A.21.10 C1321.41.01 C1670A.41.10 C2015A.12.04 C2015A.12.19 C2526A.18.10 C3120.18.86 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 09205.41.01 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C3068.41.86 C3122.41.86 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 C0783A.41.10 E1032S.41.10 E2024S.41.10 01360.35T.01 01342.35T.01 C0744A.41.10 C2514A.41.10
