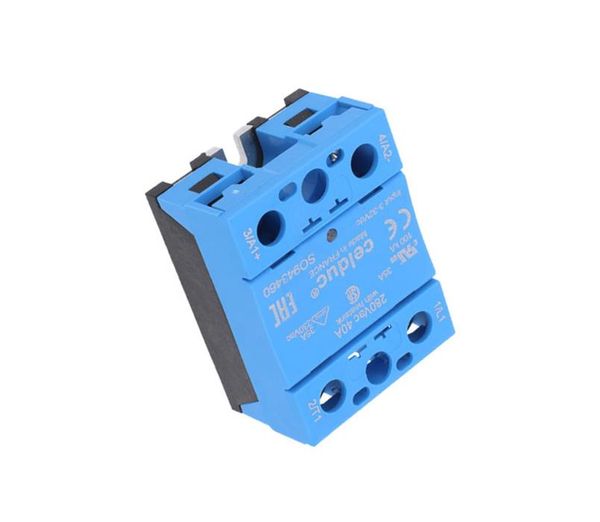

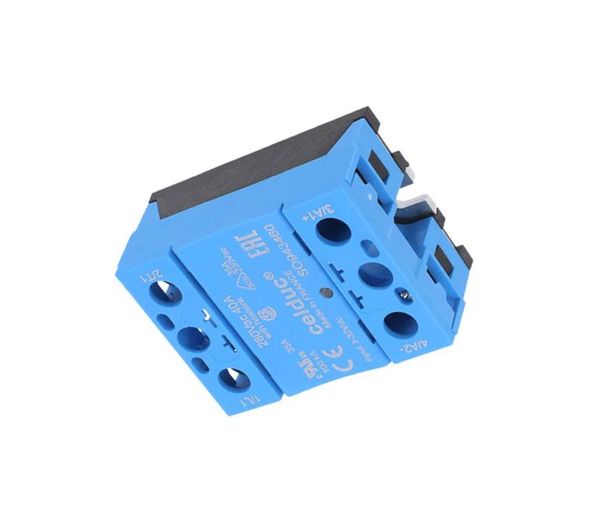

Protection S/MON/SO943460/D/04/07/2012 okpac page 1 / 5F/GB Relais statique monophas de puissance Single phase Power Solid State Relay SO943460 Output : 12-280VAC 40A(*) Relais statique synchrone spcialement adapt aux charges rsistives (AC-51). Input : 3-32VDC Zero Cross Solid State Relay especially designed for resistive loads (AC-51). 2(*) Sortie thyristors technologie TMS permettant une longue dure de vie: 12 280VAC 40A (*). 2 (*) Back to back thyristors on output with TMS technology with a long lifetime expectancy: 12 to 280VAC 40A (*). Large plage de contrle: 3 - 32VDC avec un courant de commande rgul. LED de visualisation sur l entre de couleur verte. Protection aux surtensions sur l entre intgre. Large control range: 3 - 32VDC with input current limiter. Green LED visualization on the input. Input over-voltage protection. Protection IP20 par volets amovibles sur les bornes. Etiquette repre disponbile en option. IP20 protection by removable flaps on terminals with optional labels Construit en conformit aux normes IEC/EN60947-4-3 et EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Avec tiquette de reprage en option (*) : UL/VDE = 35A With optional labels FILE Nr. E69913 REG.-Nr.10102 Dimensions Secteur AC / AC Mains 1/L1 et 2/T2 peuvent tre inverss 1/L1 and 2/T1 can be swapped Optional labels 1/L1 2/T1 Le relais doit tre mont sur 4/A2- LED dissipateur thermique. 3/A1+ Charge / Load SSR must be mounted on heatsink Heater (*) Sur charge rsistive AC-51 ne pas dpasser 40/1.4 = 28A (*) On AC-51 resistive load, don t exceed 40/1.4 = 28A Application typique: Rsistance <6 kW (AC-51) en 230VAC Typical application: <6 kW resistor (AC-51 load) on 230 VAC CAD documents: www.celduc-relais.com/uk/plan3d.asp 2 (*) TMS =Thermo Mechanical Stress Solution Proud to serve you celduc All technical caracteristics are subject to change without previous notice. Caractristiques sujettes modifications sans pravis. r e l a i s S/MON/SO943460/D/04/07/2012 okpac page 2 / 5F/GB Caractristiques d entre / Control characteristics (at 25C) DC Input : Ic = f( Uc) Paramtre / Parameter Symbol Min Typ Max Unit 14 Tension de commande / Control voltage Uc 3 5-12-24 32 V 12 Courant de commande / Control current ( Uc ) Ic <10 <13 <13 mA 10 Tension de non fonctionnement / Release voltage Uc off 2 V 8 LED d entre / Input LED verte / green 6 Tension Inverse / Reverse voltage Urv 32 V 4 2 Tension de transil d entre / Clamping voltage (Transil) Uclamp 36 V 00 Immunit / Input immunity : EN61000-4-4 2kV 00 2 4 6 8 101214 161820222426 283032 Immunit / Input immunity : EN61000-4-5 2KV Uc (VDc) Caractristiques de sortie / Output characteristics (at 25C) Paramtre / Parameter Conditions Symbol Min Typ. Max Unit Plage de tension utilisation / Operating voltage range Ue 12 230 280 V rms Tension de crte / Peak voltage Up 600 V Niveau de synchronisme / Zero cross level Usync 35 V Tension minimum amorage / Latching voltage Ie nom Ua 10 V Courant nominal / nominal current (AC-51) Ie AC-51 35 40 A rms Courant surcharge / Non repetitive overload current tp=10ms (Fig. 3) Itsm 380 500 A Chute directe l tat passant / On state voltage drop (Ie = nominal current) V 0.9 + 0,0014xIe V Tension seuil l tat passant /On state Threshold voltage 25C Vto 0.9 V Rsistance dynamique / On state dynamic resistance rt 14 m Puissance dissipe (max) / Pd 0.81xIe + 0,0014xIe W Output power dissipation (max value) Rsistance thermique jonction/semelle Rthj/c 0.55 K/W Thermal resistance between junction to case Courant de fuite l tat bloqu / Off state leakage current Ue typ, 50Hz Ilk 1mA Courant minimum de charge / Minimum load current Iemin 5 mA Temps de fermeture / Turn on time Ue typ, 50Hz ton max 10 ms Temps d ouverture / Turn off time Ue typ, 50Hz toff max 10 ms Frquence rseau/ Mains frequency range F mains f 0,1 50-60 800 Hz dv/dt l tat bloqu / Off state dv/dt dv/dt 500 V/s di/dt max / Maximum di/dt non repetitive di/dt 50 A/s 2 2 I2t (<10ms) : Value for fusing 720 1250 I t A s Immunit / Conducted immunity level IEC/EN61000-4-4 (bursts) 2kV criterion B Immunit / Conducted immunity level IEC/EN61000-4-5 (surge) 2kV criterion B Protection court-circuit / Short circuit protection coordination typ 2 see page 5 Fuse FERRAZ gRC 32A 14x51 Caractristiques gnrales / General characteristics (at 25C) Isolement entre/sortie - Input to output insulation Ui 4000 VRMS Isolation sortie/ semelle - Output to case insulation Ui 4000 VRMS Rsistance Isolement / Insulation resistance Ri 1000 ( 500VDC) M Tenue aux tensions de chocs / Rated impulse voltage Uimp 4000 V Degr de protection / Protection level / CEI529 IP20 Degr de pollution / Pollution degree - 2 Vibrations / Vibration withstand 10 -150 Hz according to IEC 60068-2-6 sine test 10 g Tenue aux chocs / Shocks withstand according to IEC 60068-2-27 11ms > 30 .... 50 g Temprature de fonctionnement /Ambient temperature (no icing, no condensation) - -55 /+100 C Temprature de stockage/ Storage temperature (no icing, no condensation) -55/+125 C Humidit relative / Ambient humidity HR 40 to 85 % Poids/ Weight 80 g Conformit CE / CE Conformity IEC/ EN60947-4-3 Conformit USA / US Conformity UL/cUL Conformit normes ferroviaires/ Conformity to railways applications yes (consult us) Plastique du boitier / Housing Material PA 6 UL94VO Semelle / Base plate Aluminium, Tinned-plated celduc www.celduc.com r e l a i s 5, Rue Ampre BP30004 42290 SORBIERS - FRANCE E-mail : celduc-relais celduc.com Fax +33 (0) 4 77 53 85 51 Service Commercial France Tl. : +33 (0) 4 77 53 90 20 Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tl. +33 (0) 4 77 53 90 19
