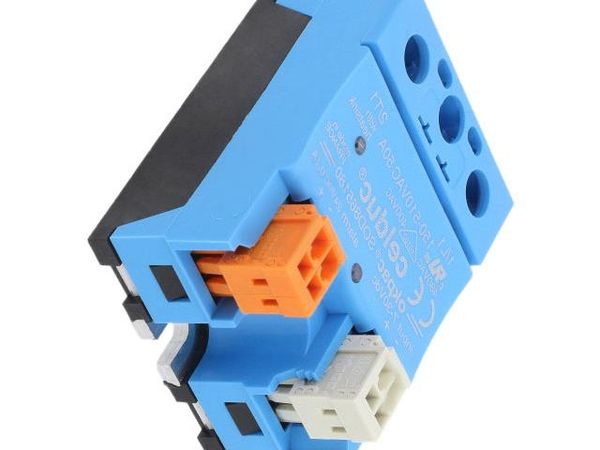

S/MON/SOD865180/D/10/07/2012 okpac page 1 / 7F/GB Relais statique monophas de puissance Single phase Power Solid State Relay SOD865180 Relais statique synchrone avec diagnostic de l tat de la charge, du rseau et de la sortie du Output : 150-510VAC 50A relais. Input : 7-30VDC Zero Cross Solid State Relay with system diagnostics of the load, the mains and the SSR output. 2(*) Sortie thyristors technologie TMS permettant une longue dure de vie: 150 510VAC 50A. 2 (*) Back to back thyristors on output with TMS technology with a long lifetime expectancy: 150 to 510VAC 50A. Entre 7-30VDC avec LED verte de visualisation de la commande 7-30VDC input with green LED visualization of control status. Contact d tat statique (diagnostic) normalement ferm. Sans alimentation externe supplmentaire - Diagnostic visualis par LED jaune. Les contacts de diagnostic peuvent tre mis en srie. Normally closed status output (diagnostic). BREVETE Without external power supply . Status visualization by yellow LED . Status output can be chained. PATENTED Trs faible niveau de synchronisme Very low zero cross voltage. 2 connecteurs d entre dbrochables technologie Connecteurs d entre dbrochables et doubls. Technologie ressort. ressort. With double removable input connectors. Spring Terminals - Gris : commande - Orange: tat (alarme) Protection IP20 par volets amovibles sur les bornes de puissance. Two removable input spring Etiquette repre disponible en option. connectors . IP20 protection by removable flaps on power terminals with optional labels. - Grey : Control - Orange : status (alarm) Construit en conformit aux normes IEC/EN60947-4-3 et EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Designed in conformity with IEC/ EN60947-4-3 and EN60950/VDE0805 IEC 60335-1/ VDE0700-1 UL-cUL Avec tiquette de reprage et clips connecteurs en option With optional labels and connectors clips REG.-Nr.10102 FILE Nr. E69913 Dimensions Synoptique de fonctionnement / Internal diagram Rseau / main 150-510 V Ic A1 1L1 Fusible / Commande / Uc Fuse Control Optional labels Verte / A2 Us Green Id Charge / Load Jaune / Vds Yellow Sortie d tat / Status output 2T1 1/L1 2/T1 0V / Us Status control status La sortie d tat est normalement ferme en l abscence de dfauts (NF) / Input - + - + Without faults the status output is normaly closed (NC) Application typique / Typical application 18kW rsistance (AC-51) - 400 VAC 50hz Autre charges: voir page 6 / Other loads: see page 6 CAD documents: www.celduc-relais.com/uk/plan3d.asp 2 (*) TMS =Thermo Mechanical Stress Solution Proud to serve you celduc All technical caracteristics are subject to change without previous notice. Caractristiques sujettes modifications sans pravis. r e l a i s RC S/MON/SOD865180/D/10/07/2012 okpac page 2 / 7F/GB Input : Ic = f( Uc) Caractristiques d entre / Control characteristics (at 25C) DC Paramtre / Parameter Symbol Min Typ Max Unit Tension de commande / Control voltage Uc 7 12-24 30 V Courant de commande / Control current ( Uc ) Ic 3.2 8-20 27 mA Tension de non fonctionnement / Release voltage Uc off 3 V LED d entre / Input LED verte / green Tension Inverse / Reverse voltage Urv 32 V Caractristiques de sortie / Output characteristics (at 25C) Paramtre / Parameter Conditions Symbol Min Typ. Max Unit Plage de tension utilisation / Operating voltage range Ue 150 400 510 V rms Tension de crte / Peak voltage Up 1200 V Niveau de synchronisme / Zero cross level Usync 12 V Tension minimum amorage / Latching voltage Ie nom Ua 10 V Courant nominal / nominal current (AC-51) Heater Ie AC-51 50 60 A rms Courant surcharge / Non repetitive overload current tp=10ms (Fig. 3) Itsm 700 750 A Chute directe l tat passant / On state voltage drop (Ie = nominal current) V 1 + 0,0075xIe V Tension seuil l tat passant /On state Threshold voltage 25C Vto 1 V Rsistance dynamique / On state dynamic resistance rt 7.5 m Puissance dissipe (max) / 2 Pd W 0,9xIe + 0,0075xIe Output power dissipation (max value) Rsistance thermique jonction/semelle Rthj/c 0,4 K/W Thermal resistance between junction to case Courant de fuite l tat bloqu / Off state leakage current Ue typ, 50Hz Ilk 5mA Courant minimum de charge / Minimum load current Iemin 5 mA Temps de fermeture / Turn on time Ue typ, 50Hz ton max 10 ms Temps d ouverture / Turn off time Ue typ, 50Hz toff max 10 ms Frquence rseau/ Mains frequency range F mains f 10 50-60 100 Hz dv/dt l tat bloqu / Off state dv/dt dv/dt 500 V/s di/dt max / Maximum di/dt non repetitive di/dt 50 A/s 2 2 I2t (<10ms) : Value for fusing 2450 2800 I t A s Immunit / Conducted immunity level IEC/EN61000-4-4 (bursts) 4kV criterion A Immunit / Conducted immunity level IEC/EN61000-4-5 (surge) 4kV criterion A Protection court-circuit / Short circuit protection coordination typ 2 see page 5 Fuse Ferraz gRC 50A 22x58 Caractristiques gnrales / General characteristics (at 25C) Isolement entre/sortie - Input to output insulation Ui 4000 VRMS Isolation sortie/ semelle - Output to case insulation Ui 4000 VRMS Isolation entre-sortie/ diagnostic - Input-Output to status insulation 2500 VRMS Rsistance Isolement / Insulation resistance Ri 1000 ( 500VDC) M Tenue aux tensions de chocs / Rated impulse voltage Uimp 4000 V Degr de protection / Protection level / CEI529 IP20 Degr de pollution / Pollution degree - 2 Vibrations / Vibration withstand 10 -150 Hz according to IEC 60068-2-6 sine test 10 g Tenue aux chocs / Shocks withstand according to IEC 60068-2-27 11ms > 30 .... 50 g Temprature de fonctionnement /Ambient temperature (no icing, no condensation) - -55 /+100 C Temprature de stockage/ Storage temperature (no icing, no condensation) -55/+125 C Humidit relative / Ambient humidity HR 40 to 85 % Poids/ Weight 80 g Conformit CE / CE Conformity IEC/ EN60947-4-3 Conformit USA / US Conformity UL/cUL Conformit normes ferroviaires/ Conformity to railways applications Yes (consult us) Plastique du boitier / Housing Material PA 6 UL94VO Semelle / Base plate Aluminium, Tinned-plated celduc www.celduc.com r e l a i s 5, Rue Ampre BP30004 42290 SORBIERS - FRANCE E-mail : celduc-relais celduc.com Fax +33 (0) 4 77 53 85 51 Service Commercial France Tl. : +33 (0) 4 77 53 90 20 Sales Dept.For Europe Tel. : +33 (0) 4 77 53 90 21 Sales Dept. Asia : Tl. +33 (0) 4 77 53 90 19
