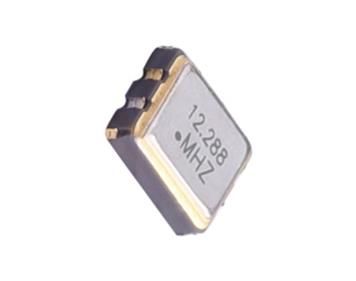

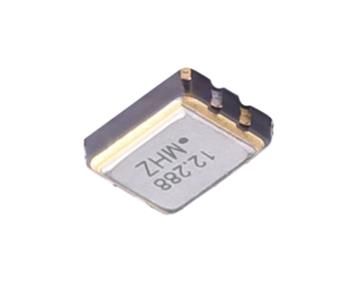

SPECIFICATIONS FOR PRODUCT TYPE Cr ys tal Oscillator SPEC 12.288MHz/3225/ 3.3V P/N CJO05-12288 3320B30 DATE 201 9/05/18 R&D APPR. SIGNATURED DEPT. ISSUE CHECK APPROVAL 201 9/05/18 201 9/ 05/19 201 9/05/19 JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD 88C13 Add: 13Th Floor, C Block,Tengfei Building,No.88 Jiangmiao Rd. Pukou District,Nanjing City,Jiangsu Province,China www.jscj-elec.com 1 rev1.0 JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SMD3.2 * 2.5 Crystal Oscillator CJO05-122883320B30 Scope: 1. This specification applies to the RoHS crystal oscillator with a frequency of 1.1 12.288MHz which will be used in electronic equipment. Construction: 2. Oscillators series: SMD 3.22.5 XO 2.1 Package: SMD 3.22.5 2.2 3. Electrical Characteristics 3.1 Nominal Frequency: 12.288MHz Frequency Stability: 3.2 20ppm ( (incl. 25C tolerance,) 3.3 Aging: 3ppm/year 3.4 Operating Temperature Range: -40 to +85 3.5 Storage Temperature Range: -55 to +125 3.6 Input Voltage (V ): +3.3 Vdc10% DD Input Current (I ): 3.7 10mA max DD 3.8 Output Waveform: CMOS 3.9 Output Symmetry: 5010% 3.10 Rise/Fall Time: 6ns max 3.11 Output Voltage V : 10%VDD OL V : 90%VDD OH 3.12 Output Load: 15pF 3.13 Output State Control: Enable/disable 3.14 Start-up Time: 5ms max 3.15 Standby current: 10A max 3.16 Phase Jitter (rms): 1ps rms max 12kHz to 20MHz max 3.17 Oscillation mode: A1 3.18 Others: Not recommended for safety applications 2 www.jscj-elec.com rev1.0
